EPM/EPG/EPS SERIES
EDGE ACTUATED TYPE
PATENT NO.: 29197
24553
153160



FEATURES

  • Edge actuated type (Piano Type) easy setting on closely racked PCB.
  • Tactile response is performed directly by larger contact pressure to ensure stable contact.
  • All plastics are UL 94V-0 grade fire retardant.
  • Bottom epoxy sealed standard to ensure free of flux immersion during wave soldering.
  • Contact wiping on make and break.
  • Gold plated or silver plated contacts to ensure low contact resistance and long operation life.
  • Ideal for data processing, communications, remote controls and burglar alarm system use, where manual programming required.

SPECIFICATIONS

1.ELECTRICAL

Contact rating
   switching 25 mA, 24 VDC
   non-switching 100 mA, 50 VDC
Contact resistance
   initial 50 m Max.
   after life test 100 m Max.
Insulation resistance 1000 M Min. at 100 VDC
Dielectric strength 500 VDC Min. for 60 seconds
Capacitance between adjacent switches 5 pF Max.

2.MECHANICAL

Temperature rating
   operating -25 to + 70
   storage -40 to + 85
Operation force 800g Max.
Mechanical life 2000 operations
Humidity 95%RH, 40 for 96 Hrs.
Vibration Per MIL-STD-202F, method 204D
Solderability after flux 2305 for
50.5 seconds, 95% coverage
Resistance to soldering heat 2605 for 51 seconds

PART NUMBERING SYSTEM

  EPM 1 08 1 1 00
   |  |  | | |  |
   |  |  | | |  +--- 00: Row Special 7.62mm
   |  |  | | +--- Sealing: 1:Non Top Tape Sealed
   |  |  | |               2:Top Tape Sealed
   |  |  | +--- Actuator and ON position (For Position 1):
   |  |  |      1:Extended Actuator and Top Side "OFF"
   |  |  |      2:Extended Actuator and Top Side "ON"
   |  |  |      3:Low Profile Actuator and Top Side "OFF"
   |  |  |      4:Low Profile Actuator and Top Side "ON"
   |  |  +--- Number of Positions: 2,3,4,5,6,7,8,9,10,12
   |  +--- Contact Forms: SPST
   +--- Series Name: EPM:Piano type

  EPG 1 08 A
   |  |  | |
   |  |  | +--- Actuator Sealing (For Position 1):
   |  |  |       A:Top Side"OFF"
   |  |  |       B:Top Side"ON"
   |  |  |      AT:Top Side "OFF" and Tape Sealed
   |  |  |      BT:Top Side "ON" and Tape Sealed
   |  |  +--- Number of Positions: As Dimensions and Circuitry
   |  +--- Contact Forms: 1.SPST  2.DPST  3.SPDT
   |                      4.3PST  5.4PST  6.DPDT
   +--- Series Name: EPG:Edge Actuated Type
                         (Gold Plated Contacts)
                     EPS:Edge Actuated Type
                         (Silver Plated Contacts)

CONSTRUCTION

EPM

EPG/EPS

OPTIONS

1. Special top or side marking available
2. Blue or black body color
3. Normal "ON" (top side "ON") available



4. Tape sealed
    EPMxxx3200 (Low Profile only)
    EPMxxx4200 (Low Profile only)




EPGxxxxT

DIMENSIONS AND CIRCUITRY (UNIT: mm)

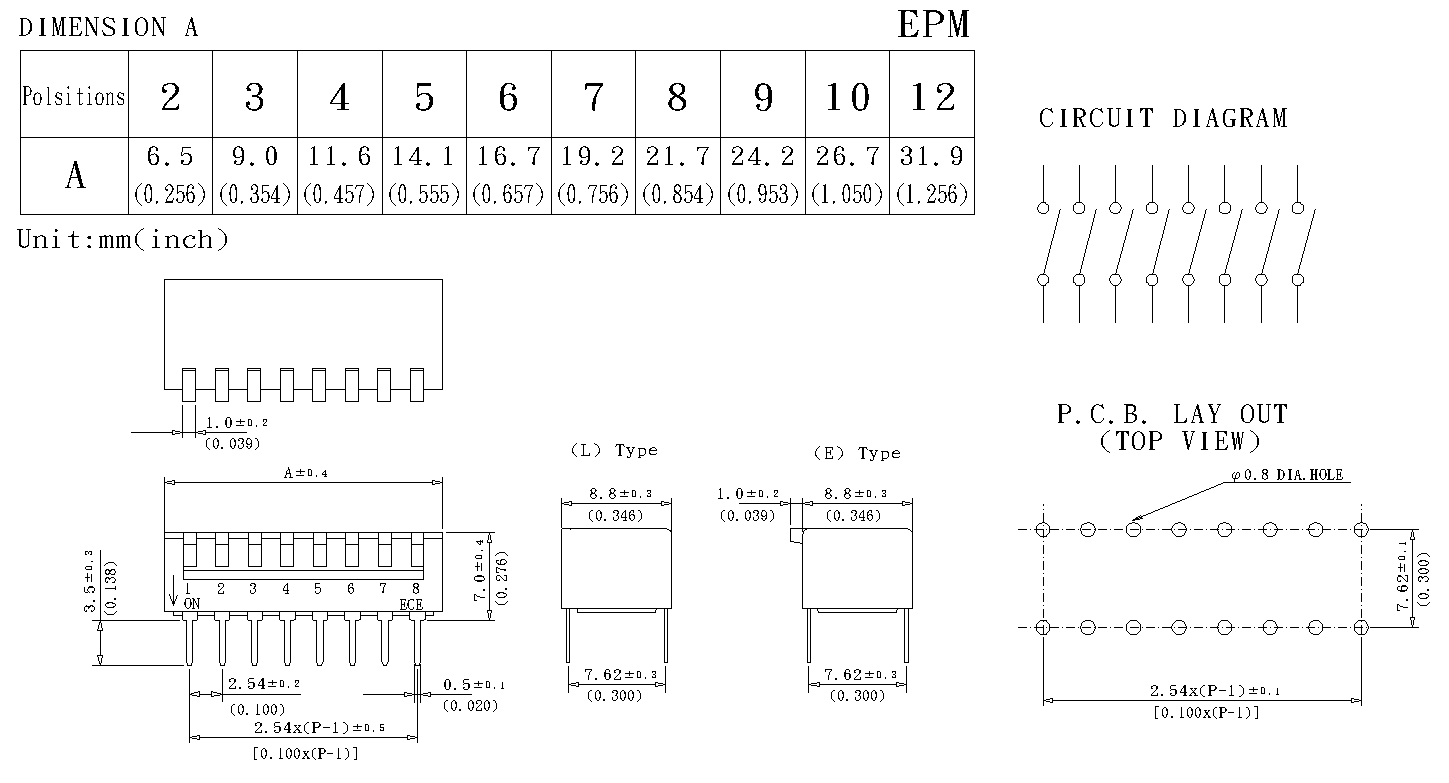

EPM

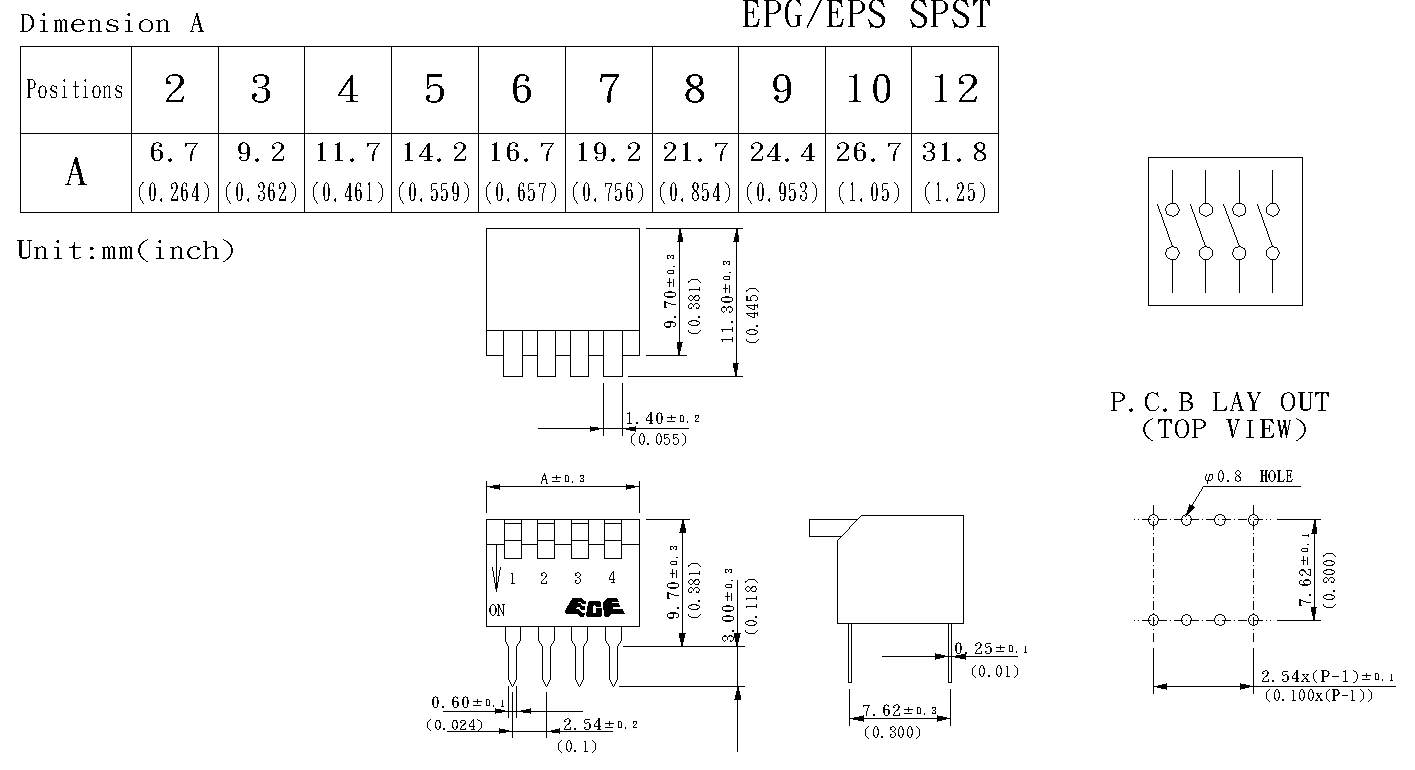

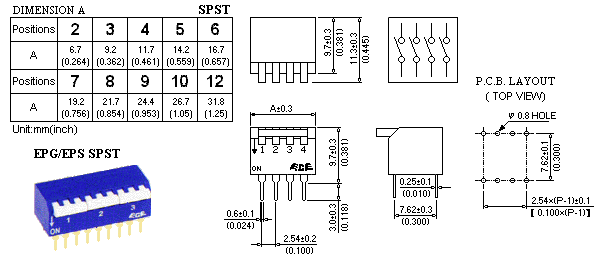

EPG/EPS SPST

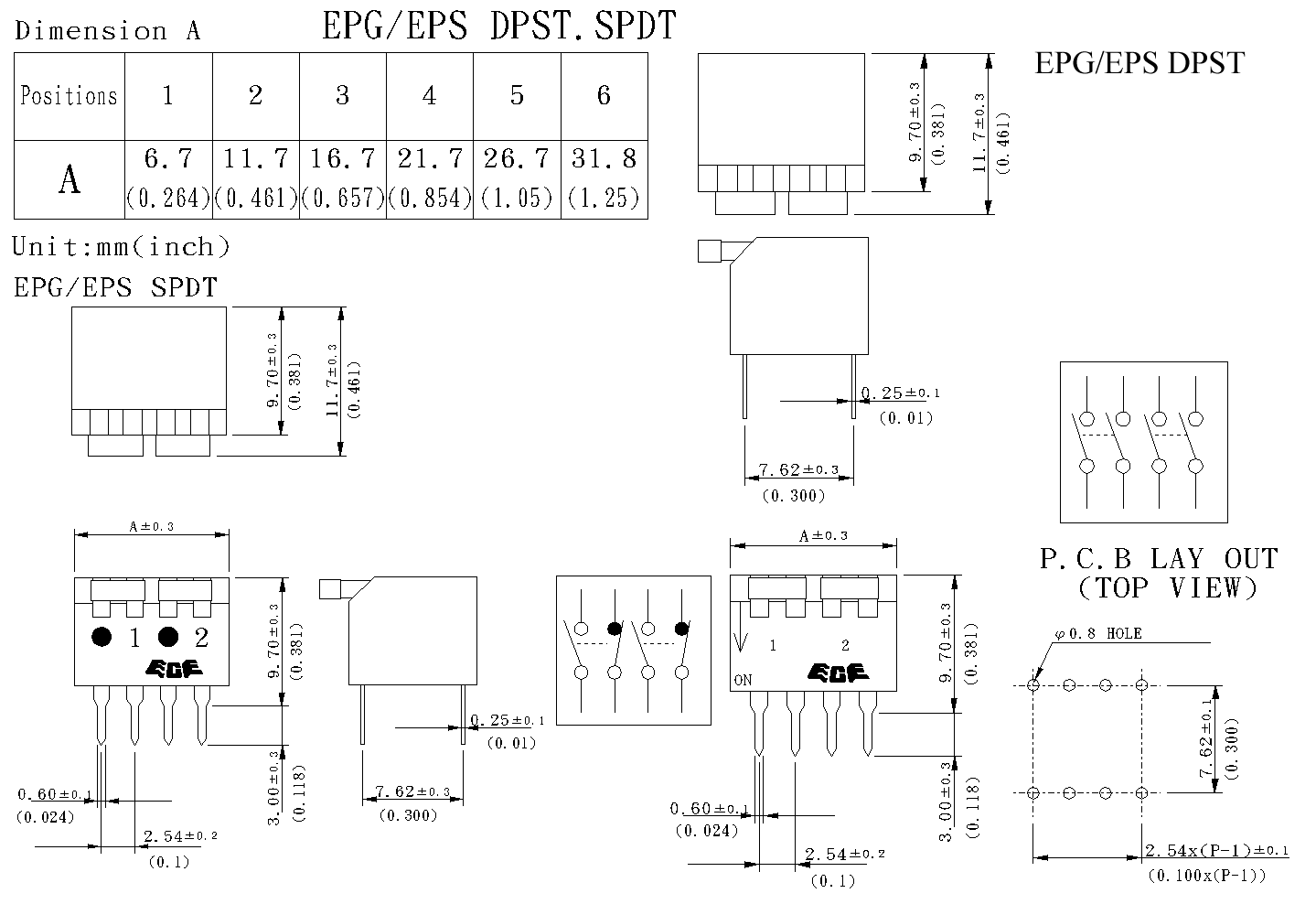

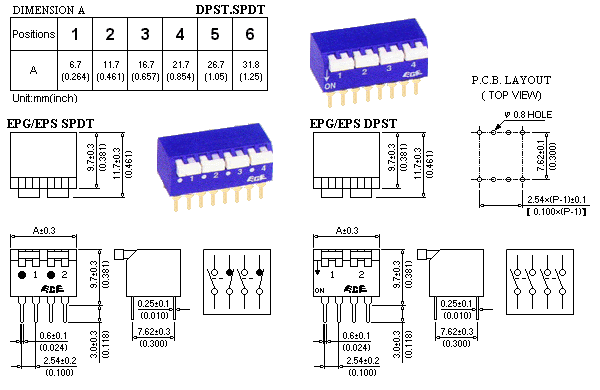

EPG/EPS DPST.SPDT

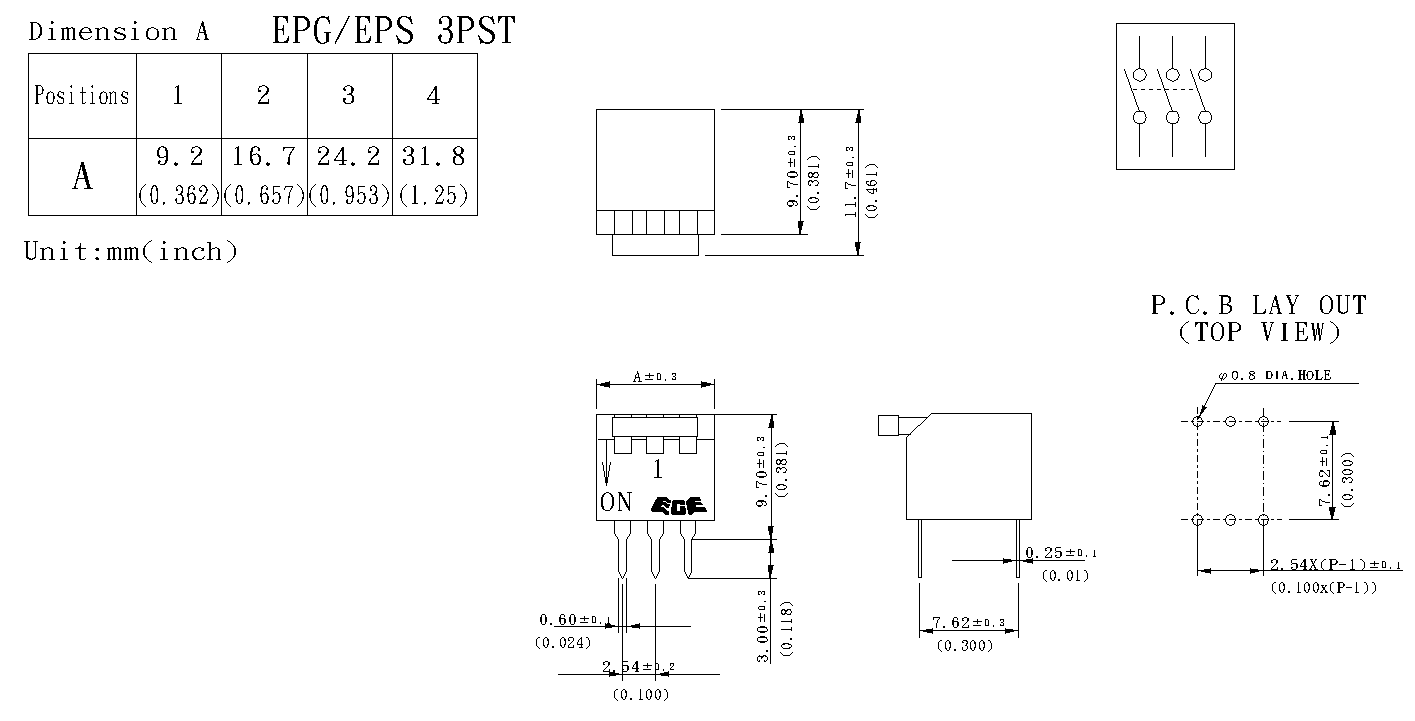

EPG/EPS 3PST

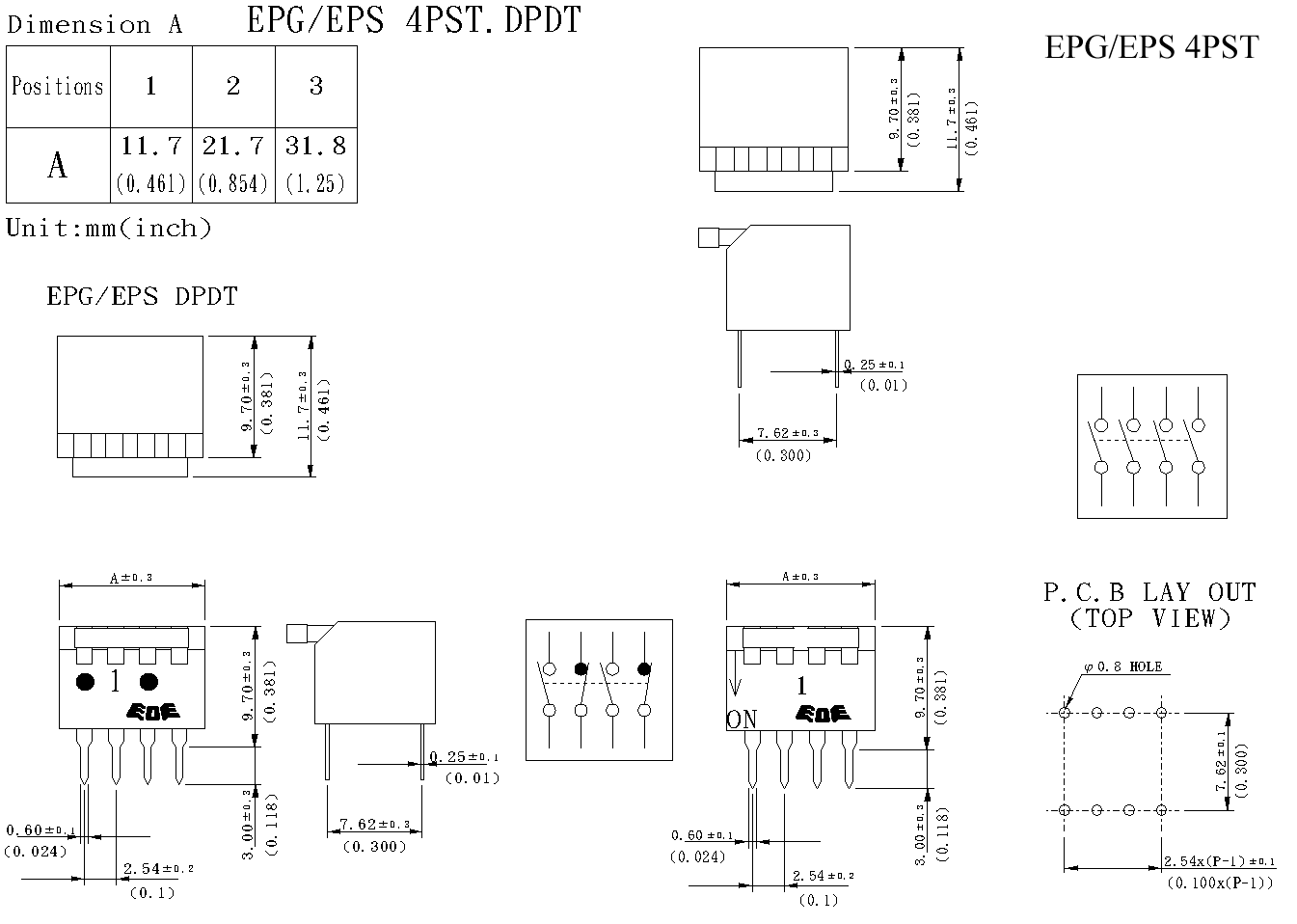

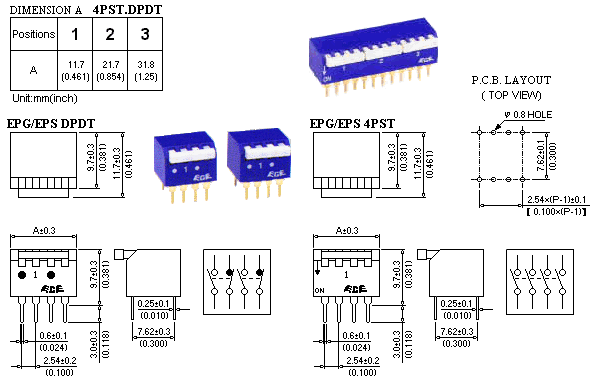

EPG/EPS 4PST.DPDT
