DIP SWITCH - ERD6 series

ERD6 SERIES
SMALL SIZE 7x7 ROTARY TYPE

FEATURES

Flat type with outer dimensions 7.2mm square; 4.0mm high on board for through hole type and 3.6mm high on board for surface mounting type.
Top size 7.23.5mm², 8mm high on board for side adjust type.
Positions (10,16) and switch code can be identified by color rotor.
Gold plated contact area ensures reliable electric continuity for micro current.

SPECIFICATIONS

1.ELECTRICAL

Contact rating
Max. switching load	100 mA, 50 VDC
Min. switching load	10 A, 5 VDC
Contact resistance	200 m Max., 1.5mA, 200 VDC
Insulation resistance	100 M Min., 100 VDC
Dielectric strength	250 VAC (rms), 60 sec.

2.MECHANICAL

Temperature rating
operating	-25 ~+70
storage	-25 ~+85
Operation force	510 gf-cm Max. (Rotational torque)
Durability	10000 detents Min.

PART NUMBERING SYSTEM

ERD 6 10 C S A C
   | | | | | | |
   | | | | | | +--- Rotor:
   | | | | | |      C:"minus", No letter:"plus"
   | | | | | +--- Ground Terminal:
   | | | | |      No letter:without, A:with
   | | | | +--- Setting:
   | | | |      S:Standard Type (Top Adjust Type)
   | | | |      R:Right Angle Type
   | | | |      M:Surface Mounting Type
   | | | |        in Tube Package
   | | | |      J:Right Angle with Surface Mounting Type
   | | | |        in Tube Package
   | | | |      D:Surface Mounting Type
   | | | |        in Tape & Reel Package
   | | | |      T:Right Angle with Surface Mounting Type
   | | | |        in Tape & Reel Package
   | | | +--- Code: R:Real, C:Complement
   | | +--- Number of positions: 10,16
   | +--- 7.27.2 mm², Flat Type
   +--- Series Name: ERD:Rotary DIP Switch

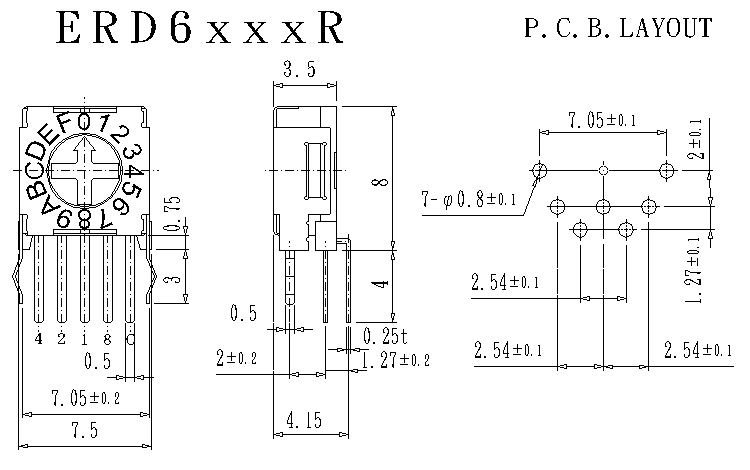

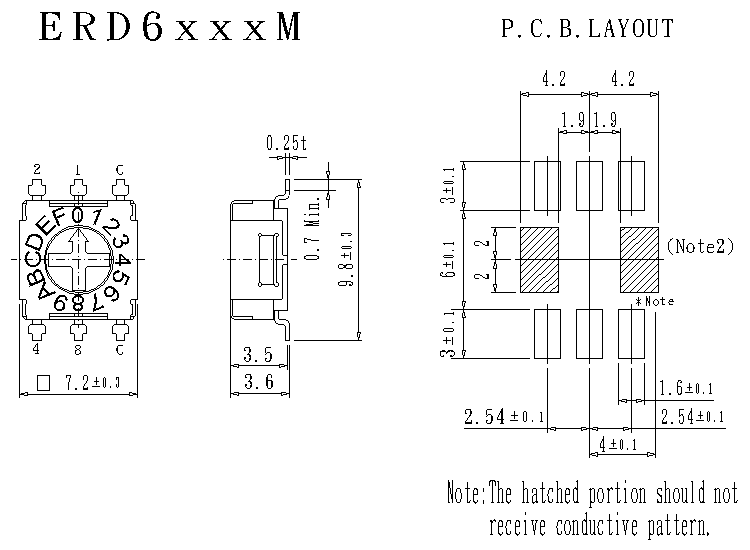

DIMENSIONS AND CIRCUITRY (UNIT: mm)

INTRODUCTION to ECE ROTARY DIP SWITCH

SIZE	POSITIONS	CODE	PIN OUT	ROTOR	TYPE	PART NUMBER
77	10,16	REAL, COMPLEMENT	3:3	FLAT	STANDARD	ERD6xxxSxx
			3:2		RIGHT ANGLE	ERD6xxxRxx
			3:3		SMT	ERD6xxxMxx
			5:0		RIGHT ANGLE WITH SMT	ERD6xxxJxx
			3:3		SMT IN T&R	ERD6xxxDxx
			5:0		RIGHT ANGLE WITH SMT IN T&R	ERD6xxxTxx
