DIMENSIONS AND CIRCUITRY: Unit: mm(inch)
 STANDARD PIN |
 |
 |
|
WIRE-WRAP PIN
|
 |
 |
|
SOLDER FORK PIN |
 |
 |
PART NUMBERING SYSTEM:
EMS 2 3 64 3 4
----- --- --- ---- --- ---
| | | | | |
| | | | | +---- 0: DO NOT NEED CLIP
| | | | | 4: FOUR FINGERED CLIP
| | | | | 6: SIX FINGERED CLIP
| | | | |
| | | | +--------- 3: LENGTH 7.4mm SLEEVE TIN PLATED
| | | | 4: LENGTH 7.4mm SLEEVE GOLD PLATED
| | | | 5: WIRE-WRAP PIN WITH TIN PLATED
| | | | 6: WIRE-WRAP PIN WITH GOLD PLATED
| | | | 7: SOLDER FORK PIN WITH TIN PLATED
| | | | 8: SOLDER FORK PIN WITH GOLD PLATED
| | | | 9: STRAIGHT PIN WITH GOLD PLATED
| | | | 91: STRAIGHT PIN WITH TIN PLATED
| | | |
| | | +-------------- NUMBER OF PINS
| | | DIP: 06, 08, 14, 16, 18, 20, 22, 24,
| | | 28, 32, 36, 40, 42, 48, 64
| | |
| | +-------------------- 3: BETWEEN TWO ROW PITCH 0.3"
| | 4: BETWEEN TWO ROW PITCH 0.4"
| | 6: BETWEEN TWO ROW PITCH 0.6"
| | 9: BETWEEN TWO ROW PITCH 0.9"
| | 7: OSCILLATOR TYPE TWO ROW PITCH 0.3"
| |

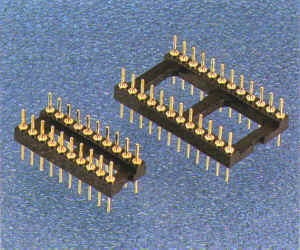

| +------------------------- 2: DIP TYPE (PLASTIC BASE)

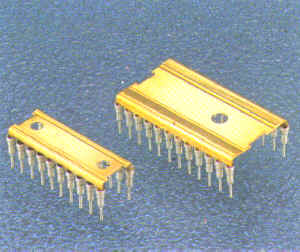

| 9: CARRIER TYPE (METAL CARRIER)
|
+------------------------------- SERIES NAME
| PART
NO. |
PIN
NO. |
A |
B |
C |
| EMS2306** |
6 |
10.1 |
7.62 |
7.6 |
| EMS2308** |
8 |
10.1 |
7.62 |
10.1 |
| EMS2310** |
10 |
10.1 |
7.62 |
12.7 |
| EMS2314** |
14 |
10.1 |
7.62 |
17.7 |
| EMS2316** |
16 |
10.1 |
7.62 |
20.3 |
| EMS2318** |
18 |
10.1 |
7.62 |
22.8 |
| EMS2320** |
20 |
10.1 |
7.62 |
25.4 |
| EMS2422** |
22 |
12.7 |
10.16 |
27.9 |
| EMS2324** |
24 |
10.1 |
7.62 |
30.4 |
| EMS2624** |
24 |
17.7 |
15.24 |
30.4 |
| EMS2628** |
28 |
17.7 |
15.24 |
35.5 |
| EMS2632** |
32 |
17.7 |
15.24 |
40.6 |
| EMS2636** |
36 |
17.7 |
15.24 |
45.7 |
| EMS2640** |
40 |
17.7 |
15.24 |
50.8 |
| EMS2648** |
48 |
17.7 |
15.24 |
60.9 |
| EMS2964** |
64 |
25.4 |
22.86 |
81.2 |
