Schiebeschalter Serie EDG und EDS von ECE Excel Cell Electronic

---

EDG/EDS SERIES
SLIDE TYPE (SLIDE WITH RIGHT ANGLE TYPE)

PATENT NO.: 29197 24553

FEATURES Tactile response is performed directly by larger contact pressureto ensure very stable contact. All plastics are UL 94V-0 grade fire retardant. Bottom epoxy sealed standard to ensure free of flux immersion during wave soldering. Contact wiping on make and break. Gold or silver plated contacts to ensure low contact resistance and long mechanical life. Ideal for data processing, communications, remote controls and burglar alarm system use, where manual programming is required.

SPECIFICATIONS

1.ELECTRICAL

Contact rating
switching	25 mA, 24 VDC
non-switching	100 mA, 50 VDC
Contact resistance
initial	50 m Max.
after life test	100 m Max.
Insulation resistance	1000 M Min. at 100 VDC
Dielectric strength	500 VDC Min. for 60 seconds
Capacitance between adjacent switches 5 pF Max.

2.MECHANICAL

Temperature rating
operating	-25 to + 70
storage	-40 to + 85
Operation force	800g Max.
Mechanical life	2000 operations
Humidity	95%RH, 40 for 96 Hrs.
Vibration	Per MIL-STD-202F, method 204D
Solderability	after flux 2305 for 50.5 seconds, 95% coverage
Resistance to soldering heat	2605 for 51 seconds

PART NUMBERING SYSTEM

  EDG 1 08 S
   |  |  | |
   |  |  | +--- Actuator and Sealing:
   |  |  |       S:Standard
   |  |  |       L:Low Profile Actuator
   |  |  |      LT:Low Profile and Tape Sealed
   |  |  |      ST:Standard and Tape Sealed
   |  |  +--- Number of positions: As Dimensions and Circuitry
   |  +--- Contact Forms: 1.SPST  2.DPST  3.SPDT
   |                      4.3PST  5.4PST  6.DPDT
   +--- Series Name: EDG:Gold Plated Contacts
                     EDS:Silver Plated Contacts

CONSTRUCTION

DIMENSIONS AND CIRCUITRY (UNIT: mm)

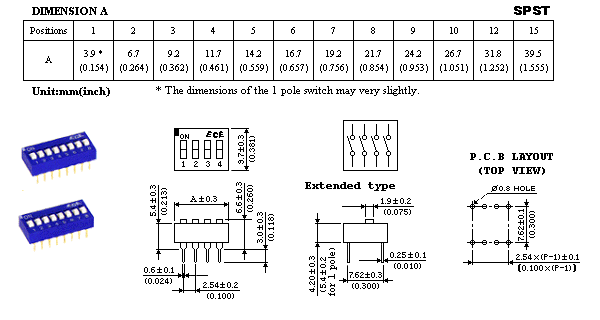

SPST

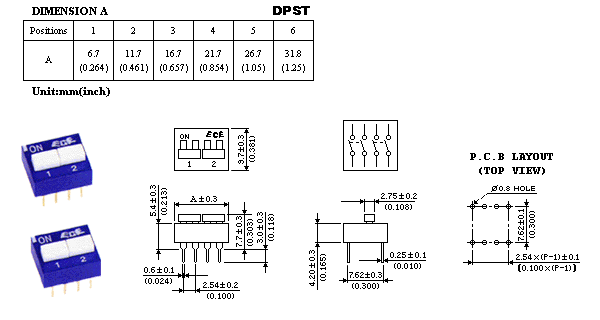

DPST

SPDT

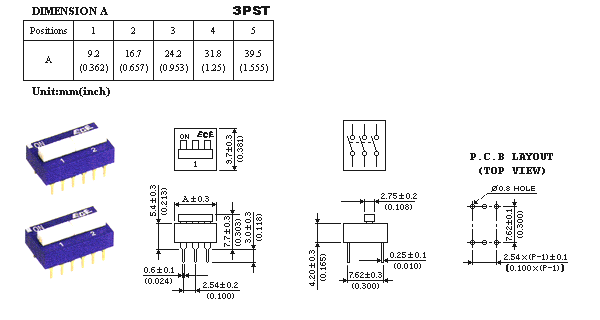

3PST

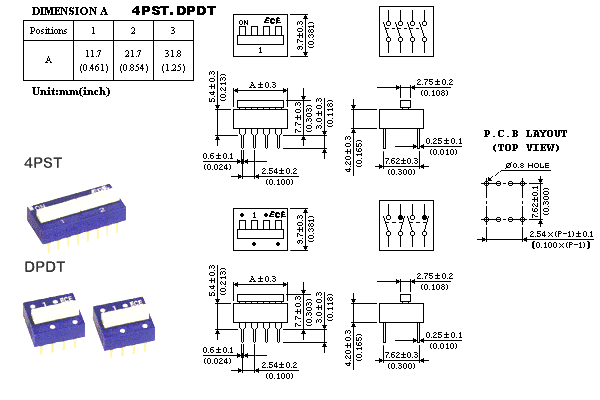

4PST.DPDT

OPTIONS

1.Special top or side marking available

2.Slide with Right Angle Type: EDG(S)xxxSRA Series

PART NUMBERING SYSTEM

  EDG 1 08 S RA
   |  |  | |  |
   |  |  | |  +--- Right Angle
   |  |  | +--- Actuator and Sealing:
   |  |  |       S:Standard
   |  |  |       L:Low Profile Actuator
   |  |  |      LT:Low Profile and Tape Sealed
   |  |  |      ST:Standard and Tape Sealed
   |  |  +--- Number of positions: As Dimensions and Circuitry
   |  +--- Contact Forms: 1.SPST  2.DPST  4.3PST  5.4PST
   +--- Series Name: EDG:Gold Plated Contacts
                     EDS:Silver Plated Contacts

3.Low profile actuators

4.Low profile actuators plus top tape sealed

---
