MODULAR
PLUG |
FEATURES
Available for round and flat-oval cable. Plug are available for solid wire 24-26 AWG. Available for non-shielded and shielded configurations to avoid EMI/RFI Deliver speeds up to 100 MHz. |
PART NUMBERING SYSTEM
EMP 8 8 1 E
R 2 0 1 0 0 XX
| | | | | | | | | | | |
| | | | | | | | | | | +----------------- Special Number:
| | | | | | | | | | +----------------- Wire Diameter:
| | | | | | | | | |
0:Standard 1.0mm,
| | | | | | | | | |
1:0.9mm, 2:0.8mm, 3:0.7mm
| | | | | | | | | +--------------- Type:
| | | | | | | | |
0:Standard, 1:Insert Type
| | | | | | | | +-------------- Appearance:
| | | | | | | |
0:Standard, 1:Shielded
| | | | | | | +------------- Dimensions:
| | | | | | |
0:Standard, S:Short Body, L:Long Body
| | | | | | +------------ Material:
| | | | | |
0:94-V0,
2:94-V2
| | | | | +---------- Cable Application:
| | | | |
R:For Round Cable Type
| | | | |
F:For Flat-Oval Cable
Type
| | | | +-------- Selective Gold Plating Thickness:
| | | | A:3" B:6" C:15"
D:30" E:50"
| | | +------ Contact Blade Specifications:
| | | 1:For stranded
wire
| | | 2:2 prongs
contacts
| | | 3:3 prongs
contacts
| | +----- Number of Contacts: 2,3,4,5,6,7,8,9,A:10
| +--- Number of Positions: 4,6,8,A:10
+--- Series Name: EMP
SPECIFICATIONS
Electric test A. 150 VAC Max., at 1.5 Amps. B. Dielectric with standing 500 VAC. C. Insulation Resistance: 500 M. D. Termination Resistance: 35 m. Mechanical: |
Material and Finished: Housing: Polycarbonate, UL94-V0 UL94-V2 Contact: Phosphor bronze, selective gold plated in contact area over 100" nickel plated. Shield: Nickel plated, brass. Operating Temperature:
|
DIMENSIONS

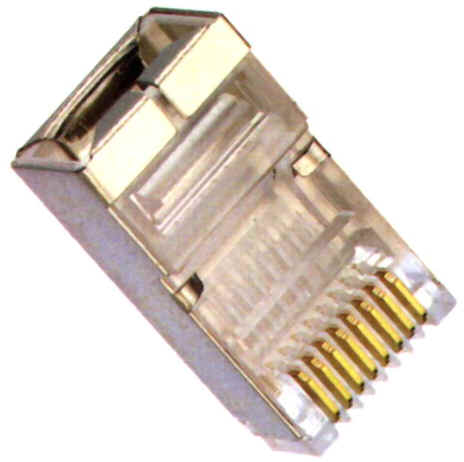

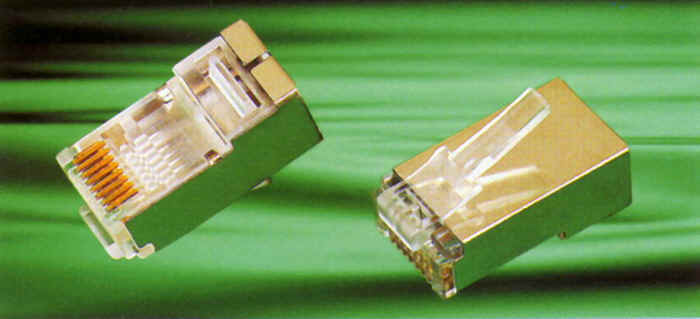

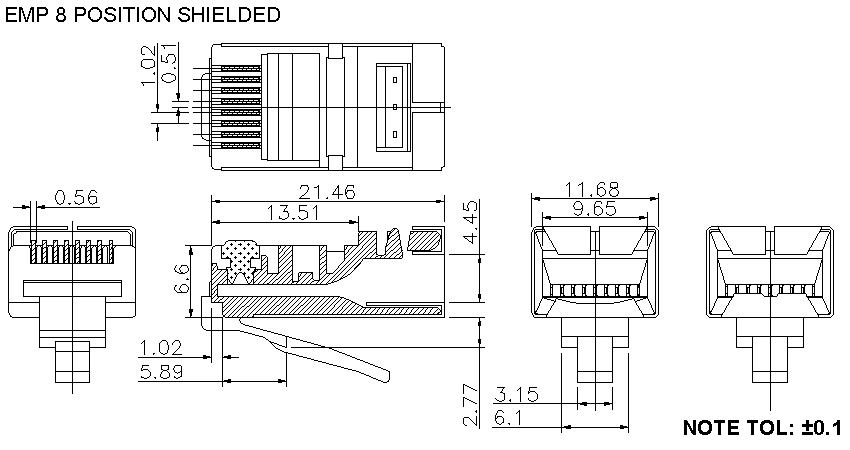

EMP 8 POSITION SHIELDED | |
|
|

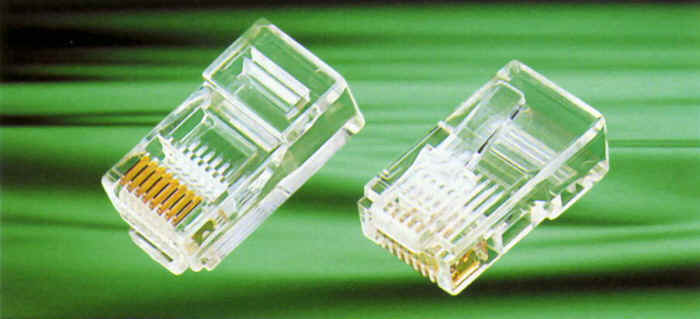

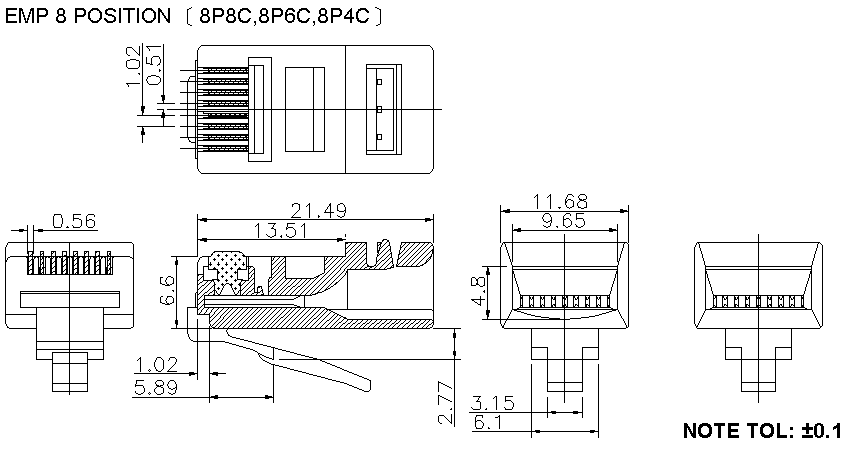

EMP 8 POSITION [8P8C,8P6C,8P4C] . . . . . . | |
|
|

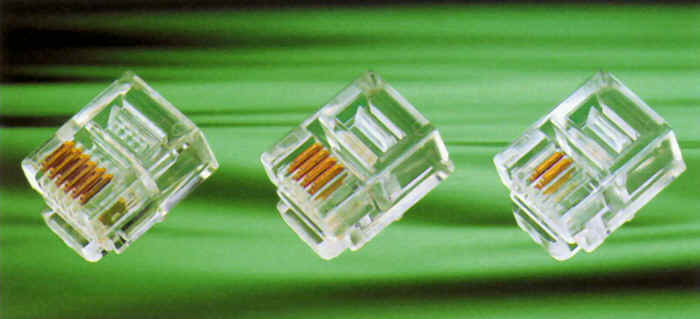

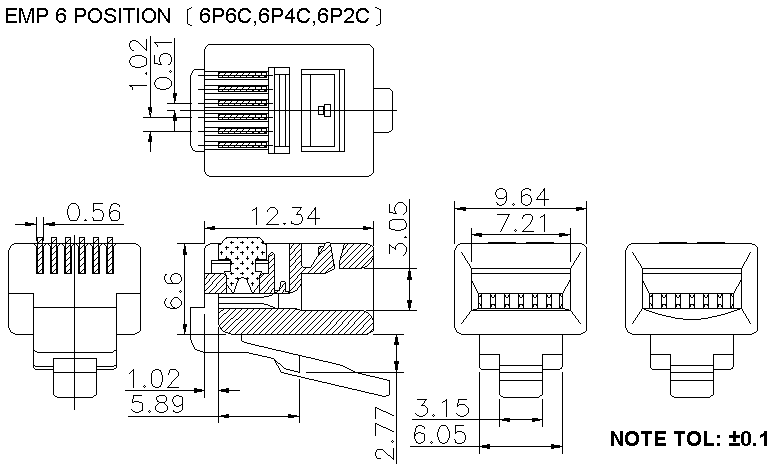

EMP 6 POSITION [6P6C,6P4C,6P2C] . . . . . . | |
|
|

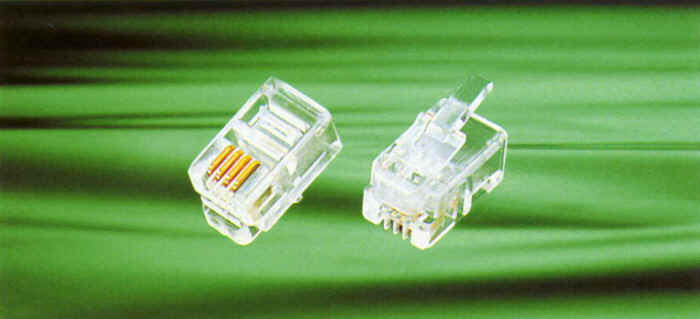

EMP 4 POSITION [4P4C,4P2C] . . . . . . . . . . . . | |
|
CONTACT BLADE
