Earphone/Microphone Jack

Earphone / Microphone Jack
EPJ0 SERIES

MODEL: 2504-03P (3P)

 MODEL: 2504-04ST (4P) MODEL: 2504-06I (4P)
MODEL: 2503-03P (3P) MODEL: 2506-06P (6P) MODEL: 2508-08P (8P)



FEATURES

  • Smallest size and lightest weights design.
  • Accept an earphone/microphone combination with a remote transmission/reception function for successful hand-free operation
  • All materials are UL 94V-0 grade fire retardant plastics.
  • Ideal for cellular phones, PDA equipments etc..



SPECIFICATIONS

  • Contact rating: 12 VDC, 1A
  • Temperature rating:
    Operating temperature range: -20 +70
    Storage    temperature range: -25 +50 (below 85%RH)

1.ELECTRICAL

No. Test description Requirement Test method
1 Insulation resistance 100M Min. (1)Test voltage: 250VDC10VDC
(2)Point: Between open contact.
2

Dielectric strength

No disruptive discharge
Leakage current: 2mA Max.

 (1)Test voltage: 250VAC
(2)Duration: 60sec.
(3)Point: Between open contact.
3 Contact resistance Initial: 30m Max.
After life: 100m Max.		 (1)Test voltage: 20mV
(2)Test current: 1mA

2.MECHANICAL

No.

 Test description Requirement Test method
1 Mating/unmating force 0.3~3.0Kgf (3~30N) Max.

To measure necessary for plug
and jack mating/unmating

2

Terminal strength

Any outstanding damage
shall not be found. Bend
of terminal is acceptable.

Test condition:
0.5kgf(5N) 10sec.
3 Contact strength

The contact strength of
fix/main terminal shall
be accepted.

Test condition:
50gf(0.5N) Min.

4 Contact gap To measure the gap between
non-contact to plug.		 0.1mm Min.



PART NUMBERING SYSTEM

  EPJ  0  XXX  1  0
   |   |   |   |  |
   |   |   |   |  +--- Special number
   |   |   |   +--- Colour: 1:Black
   |   |   +--- Model and function:
   |   |        250:2504-03P  (3P)
   |   |        251:2504-04ST (4P)
   |   |        252:2504-06I  (4P)
   |   |        253:2503-03P  (3P)
   |   |        256:2506-06P  (6P)
   |   |        258:2508-08P  (8P)
   |   +--- Type: 0:Jack
   +--- Series name: EPJ Series

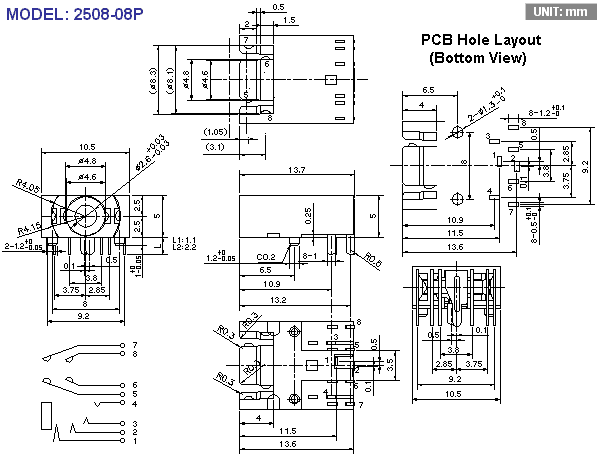

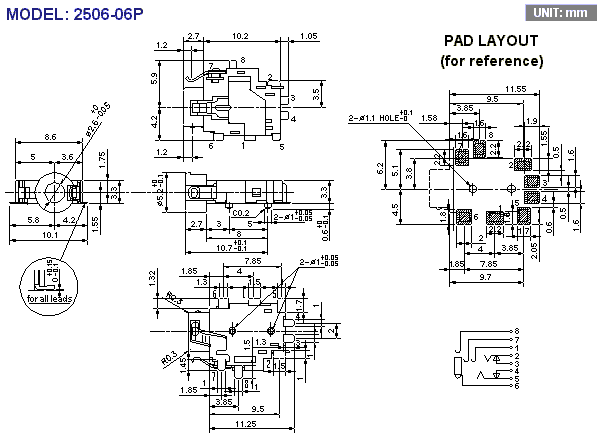

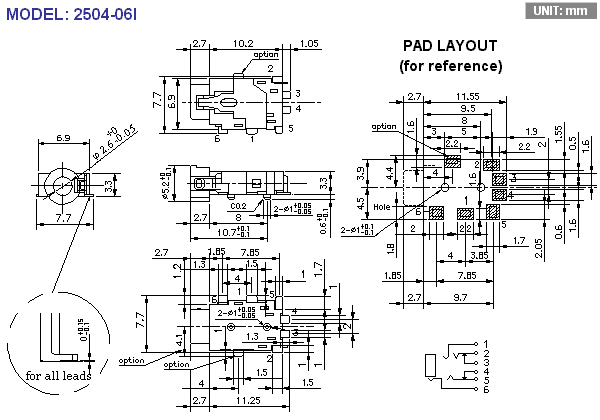

DIMENSIONS
