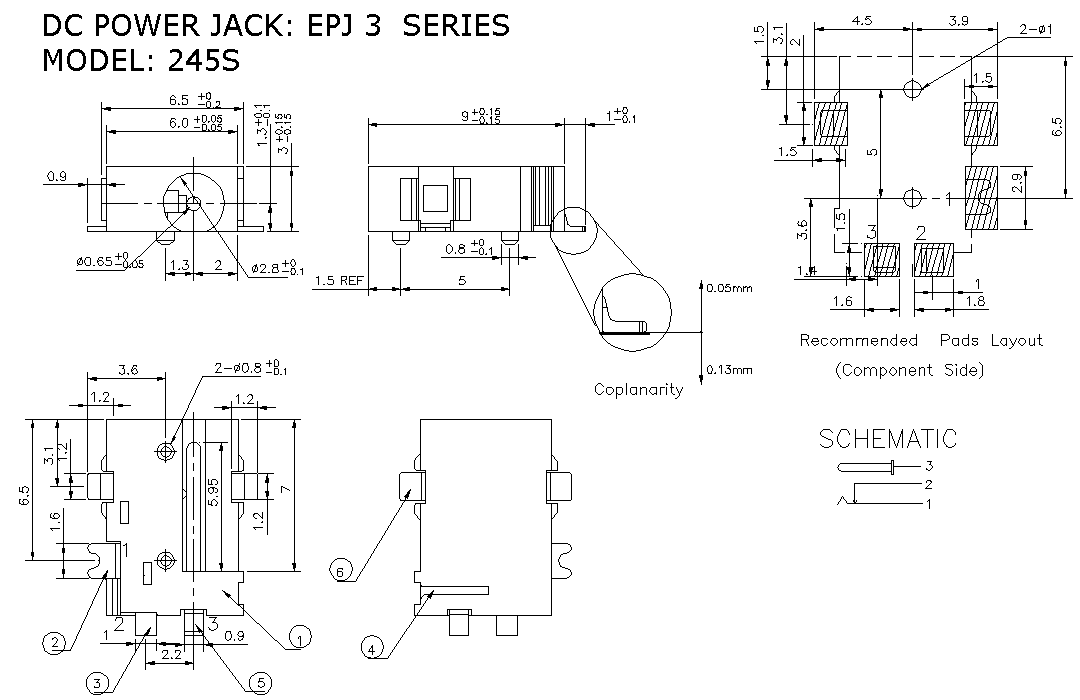

DC POWER JACK
EPJ 3  SERIES

• Smallest size, lightest weights and very low profile design.
• Applied on audio systems and electronic apparatus.
• All materials are UL 94V-O grade fire retardant plastics.
• Applied on the high temperature plastic for reflow soldering process.

MODEL: 245S

• Contact rating: Rated Voltage: 5VDC
                        Rated Current: 2A, DC
• Temperature rating: Operating temperature range: -25 ~ +85

No.

Test description

Requirement

Test method

1

Insulation resistance

100 M Min.

2

Dielectric strength

No disruptive discharge
Leakage Current: 2mA Max.

3

Contact resistance

PLUG TO CONTACT:
Initial: 50m Max.
After life: 100m Max.
CONTACT TO SHUNT:
Initial: 30 m Max.
After life: 60m Max.

No.

Test description

Requirement

Test method

1

Mating/unmating force

Initial:
0.3~2.0Kgf (3~20N) Max.
After life:
0.2~2.0Kgf (2~20N) Max.

To measure necessary for plug and jack mating/unmating

2

Terminal strength

Any outstanding damage shall not be found. Bend of terminal is acceptable.

Test condition:
0.5kgf(5N) 10sec

• All jacks are packed into ploy bags and then packed into boxes.
• All jacks may be packed using tape & reel methods.

• Part NO.
• Description
• Lot NO.
• Quantity
• Tester NO.

• Reprocess NO.
• QC stamp
• Date
• ECE mark
• Manufacturers name
