Receptacle Socket
ERC SERIES
Features
.Specially designed to accept the ELK Socket.
.Standard 0.100"(2.54mm) IC pitch, easy to mount in PC board.
.All plastics are UL 94V-0 grade fire retardant.
.Gold plated contact to ensure low contact resistance and long operation life.
Specifications
1. ELECTRICAL
| Contact Rating | 50 VDC, 100 mA |
| Contact Resistance | 30 m Max. |
| Insulation Resistance | 100 M Min. |
| Dielectric Strength | 500 VDC Min. for 60 seconds |
| Capacitance between adjacent contacts | 5pF Max. |
2. MECHANICAL AND ENVIRONMENTAL
| Temperature Rating | |
Operating |
-25oC to +70oC |
Storage |
-40oC to +85oC |
| Operating Life | 200 cycles |
| Humidity | 95% RH, 40oC for 96 Hrs. |
| Vibration | Per MIL-STD-202F, METHOD 201A |
| Solderability | After flux 230
5oC for 5 0.5 seconds,
95% coverage |
| Soldering Heat | 260 5oC
for 5 1 Seconds |
Part Numbering System
ERC 6 32 6 ** --- --- ---- --- ---- | | | | | | | | | | | | | | +------------Option | | | | 00:Blue | | | | 01:Black | | | | 07:Green | | | | | | | +-----------------Lead Length | | | 3:3.5mm | | | 6:16.0mm | | | | | +----------------------Number Of Leads | | 24,28,32,40,48 | | | +---------------------------Row Spacing | 6:0.6inch (15.24mm) | +---------------------------------Series Name

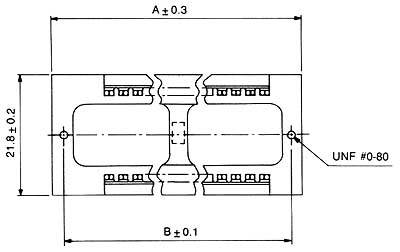

Dimensions Unit:mm
Dimensions
| Leads | Part Number | A | B | Z |
| 24 | ERC6246** | 45.0 | 40.9 | 11 |
| 28 | ERC6286** | 50.4 | 46.0 | 13 |
| 32 | ERC6326** | 55.2 | 51.1 | 15 |
| 40 | ERC6406** | 65.6 | 61.2 | 19 |
| 48 | ERC6486** | 75.8 | 71.4 | 23 |

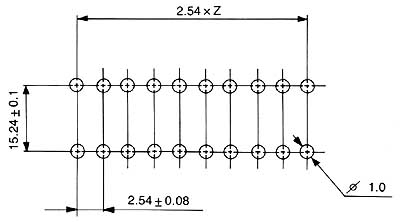

P. C. B. Hole Patterns For Sockets
Notices Of Usage
.Please take care of the temperature of solder not to be out of specified
requirements
during soldering of socket.
.Don't use rigid wire. When wires are to be used, please use multistrand wires
no
heavier than 39 gauge to prevent deformation of the contacts.
