Drehcodierschalter Serie ERD von ECE Excel Cell Electronic

---

ERD SERIES
10x10 SIZE SEALED CONSTRUCTION ROTARY TYPE

PATENT NO.: 61003 116216 5814775(U.S.A.)
FEATURES Molded-in terminals and fully sealed construction. Standard 2.54mm pin spacing. All plastics UL 94V-0 grade fire retardant. Reliable contact and long-term stability. Binary decimal (8 or 10 positions) and hexadecimal (16 positions), real and complementary codes available. Pin-out compatible with most of current equivalents. Gold plated contacts to ensure low contact resistance.



SPECIFICATIONS

1.ELECTRICAL

Contact rating
switching	25 mA, 24 VDC
non-switching	100 mA, 50 VDC
Contact resistance	100 m Max.
Insulation resistance	1000 M Min. at 100 VDC
Dielectric strength	250 VAC Min. for 60 seconds

2.MECHANICAL

Temperature Rating
operating	-25 to +70
storage	-40 to +85
Operation force	500 gf-cm Max.
Mechanical life	2000 steps per position
Vibration	10Hz-50Hz-10Hz for 6Hrs.
Solderability	after flux 2305 for 50.5 seconds, 95% coverage
Resistance to soldering heat	2605 for 51 seconds.
Reflow soldering heat for SMT type(reference only)	reflow zone 2305 for 20 seconds.



PART NUMBERING SYSTEM

  ERD 1 10 R S
   |  |  | | |
   |  |  | | +--- Setting:
   |  |  | |      S:Standard Type (Top Adjust Type)
   |  |  | |      R:Right Angle Type with Rows Spacing 2.54 mm
   |  |  | |        Side Adjust Type)
   |  |  | |      F:Right Angle Type with Rows Spacing 5.08 mm
   |  |  | |        (Side Adjust Type)
   |  |  | |      M:Surface Mounting Type with Top Tape Sealed
   |  |  | |      D:Surface Mounting Type with Top Tape Sealed
   |  |  | |        in Tape & Reel Package
   |  |  | +--- Code: R:Real
   |  |  |            C:Complement
   |  |  +--- Number of positions: 08,10,16
   |  +--- Rotor: 1:Flat Type (pin out 3:3)
   |              2:Shaft Type(pin out 3:3)
   |              4:Flat Type (pin out 1:4)
   |              5:Shaft Type(pin out 1:4)
   +--- Series name: ERD:Rotary Type Sealed Construction



CODE

PIN NO. POSITION 0 1 2 3 4 5 6 7 8 9 A B C D E F 1 2 4 8

.... Real Code Rotor color: White (3:3), Yellow (1:4) .... Complement Code Rotor color: Red (3:3), Orange (1:4)



CONSTRUCTION

OPTIONS

1.Special marking available upon request. 2.Shaft Cover.    418-80100(White 3:3)    418-80200(Red 3:3)    418-80300(Yellow 1:4)    418-80400(Orange 1:4)

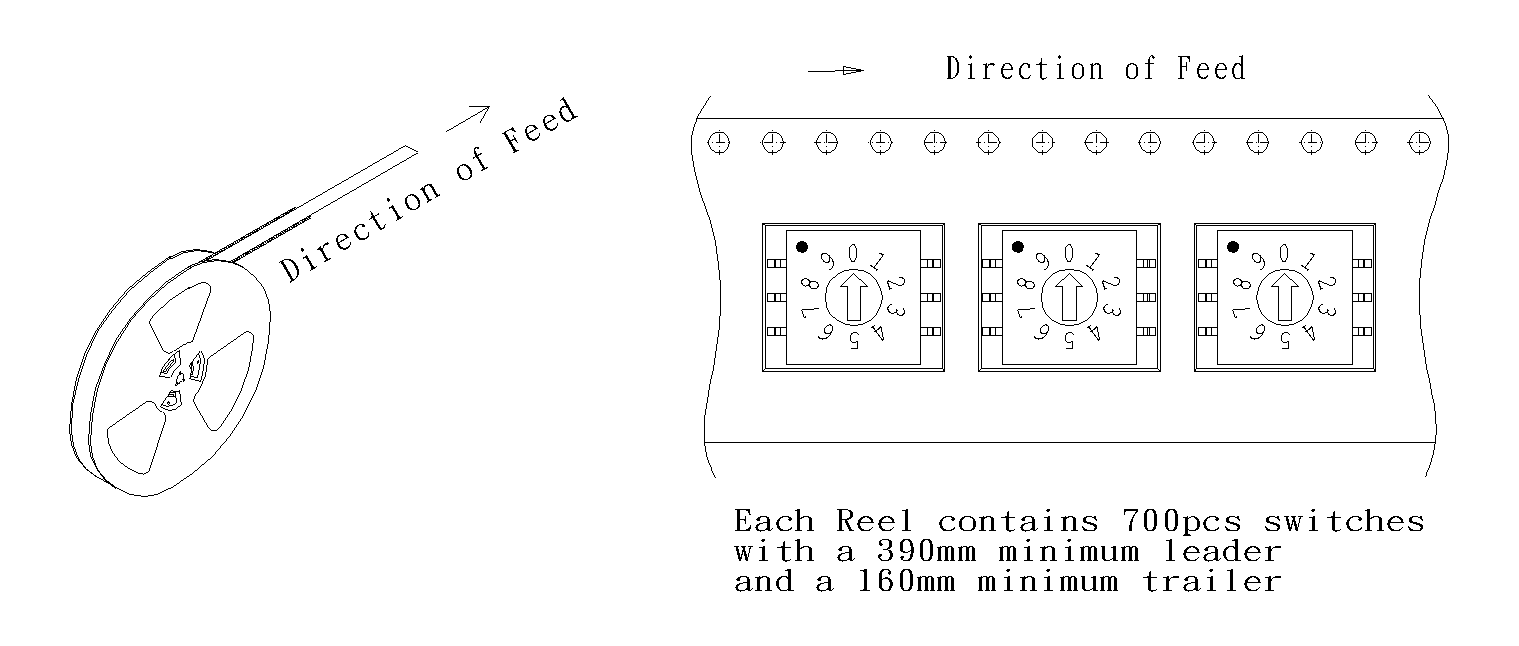

3.Tape & Reel Packaging (Per EIA STANDARD):

INTRODUCTION to ECE ROTARY DIP SWITCH

SIZE	POSITIONS	CODE	PIN OUT	ROTOR	TYPE	PART NUMBER
1010	8,10,16	REAL, COMPLEMENT	3:3	FLAT, SHAFT	STANDARD	ERD1xxxS, ERD2xxxS
					RIGHT ANGLE	ERD1xxxR/F, ERD2xxxR/F
				FLAT	SMT	ERD1xxxM
					SMT IN T&R	ERD1xxxD
			1:4	FLAT, SHAFT	STANDARD	ERD4xxxS, ERD5xxxS
					RIGHT ANGLE	ERD4xxxR/F, ERD5xxxR/F
				FLAT	SMT	ERD4xxxM
					SMT IN T&R	ERD4xxxD

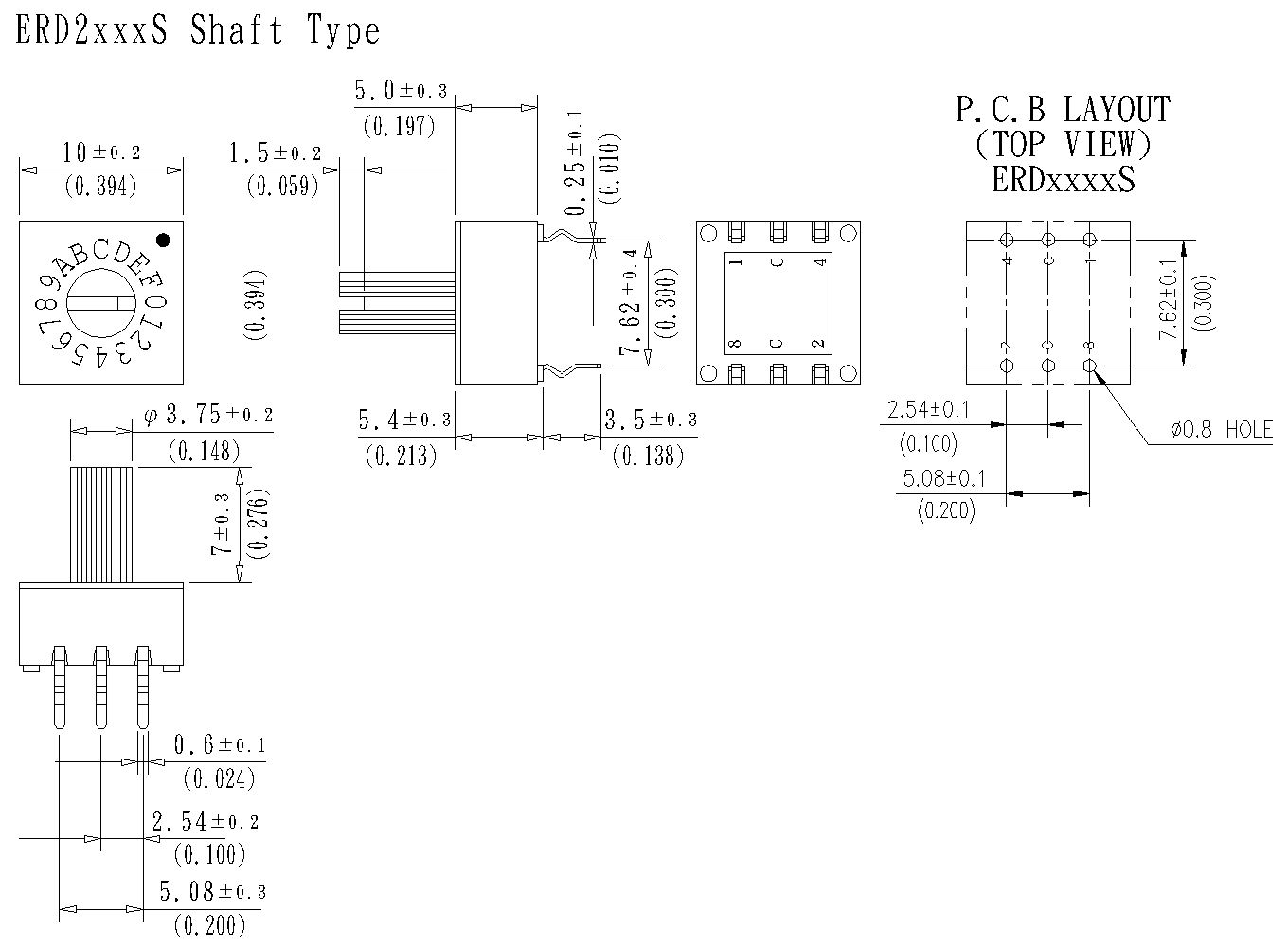

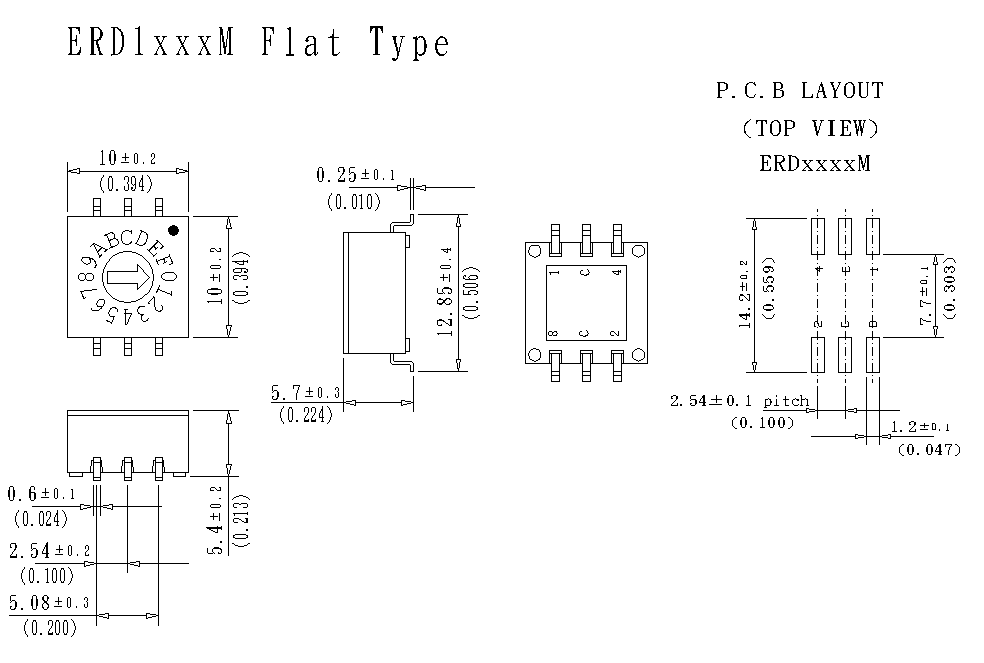

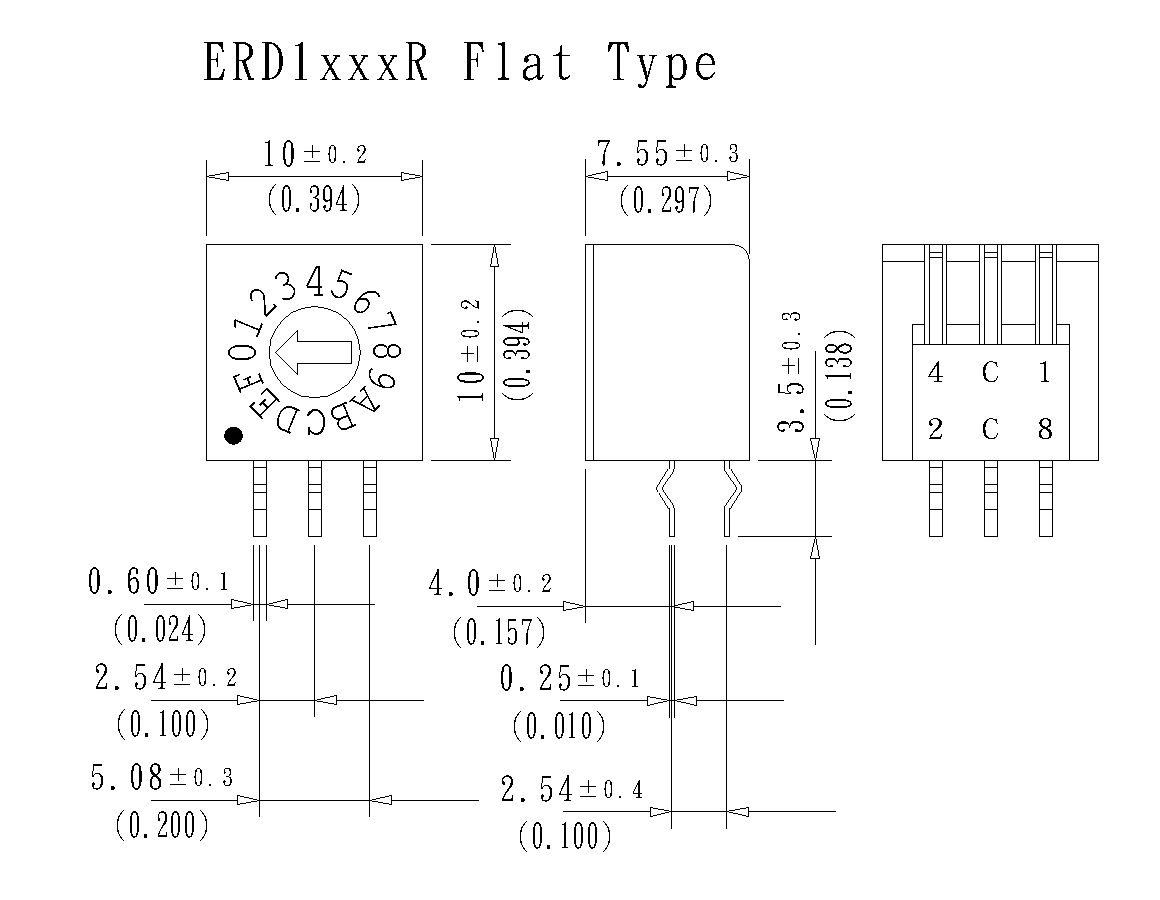

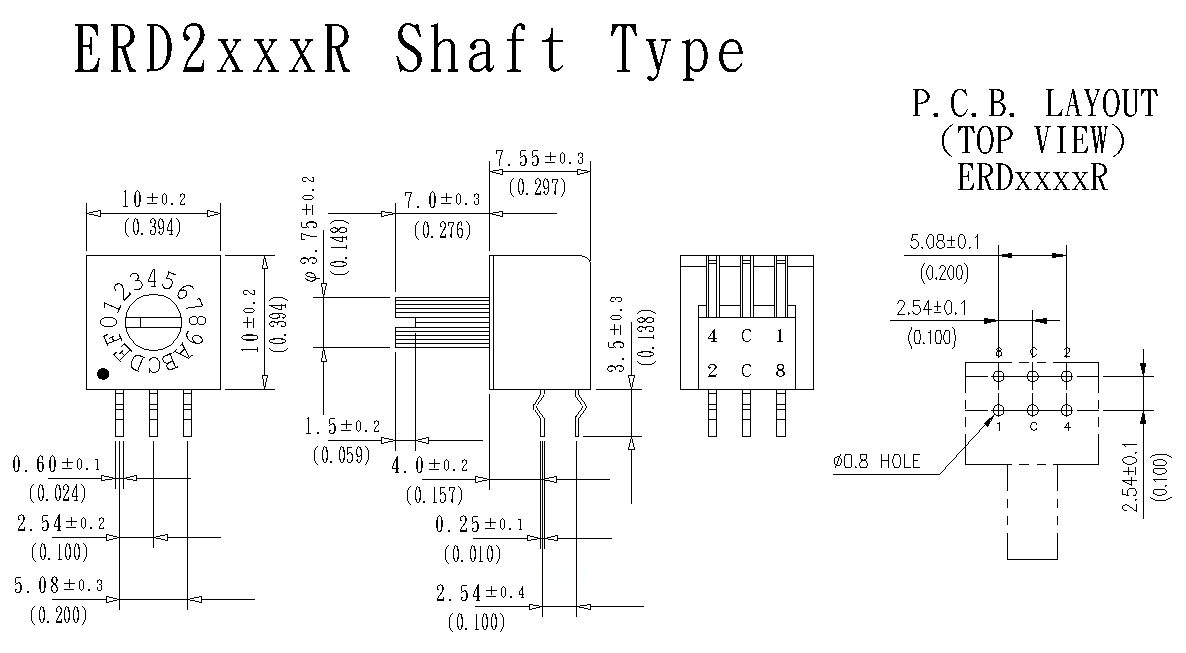

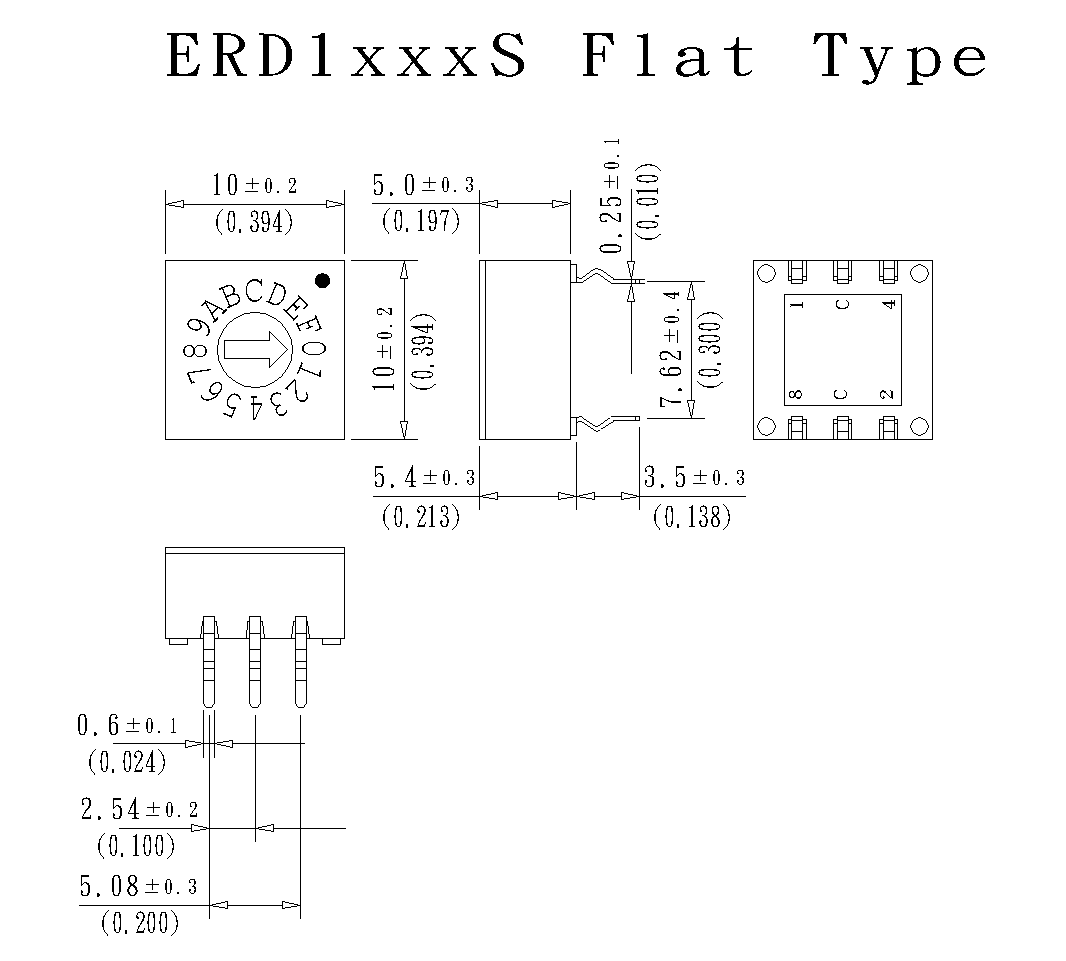

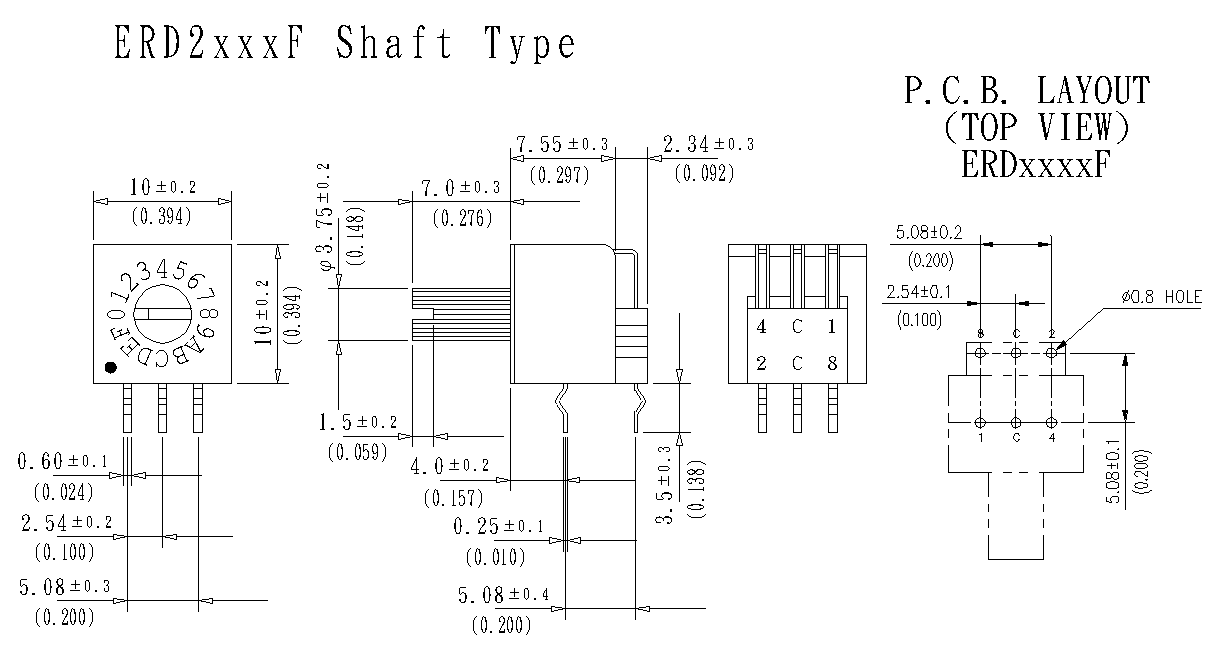

DIMENSIONS AND CIRCUITRY (UNIT: mm)   PIN OUT 3:3

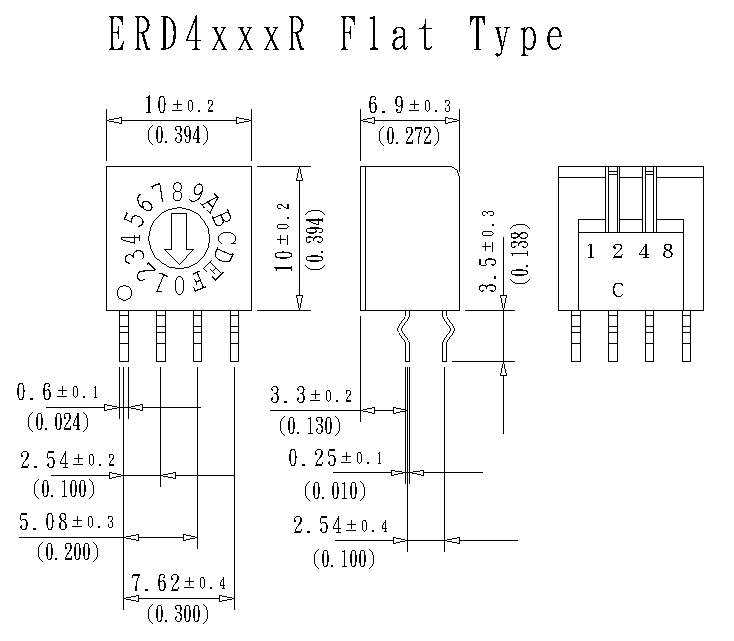

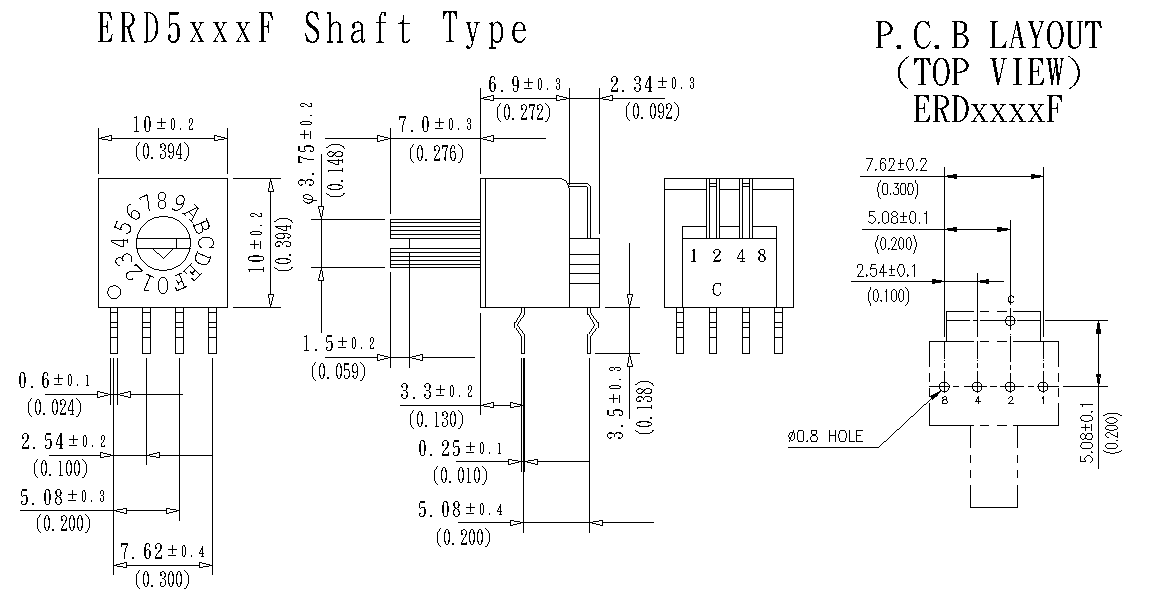

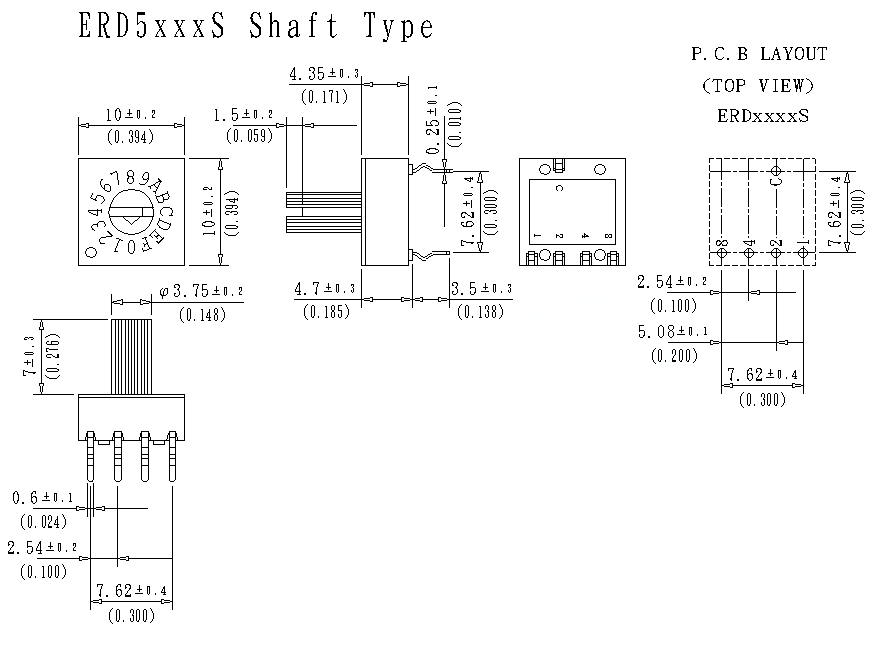

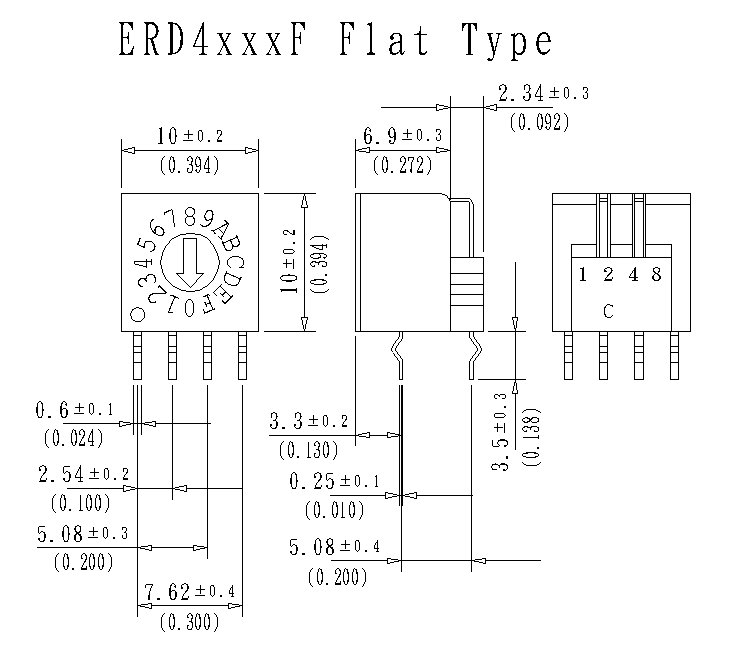

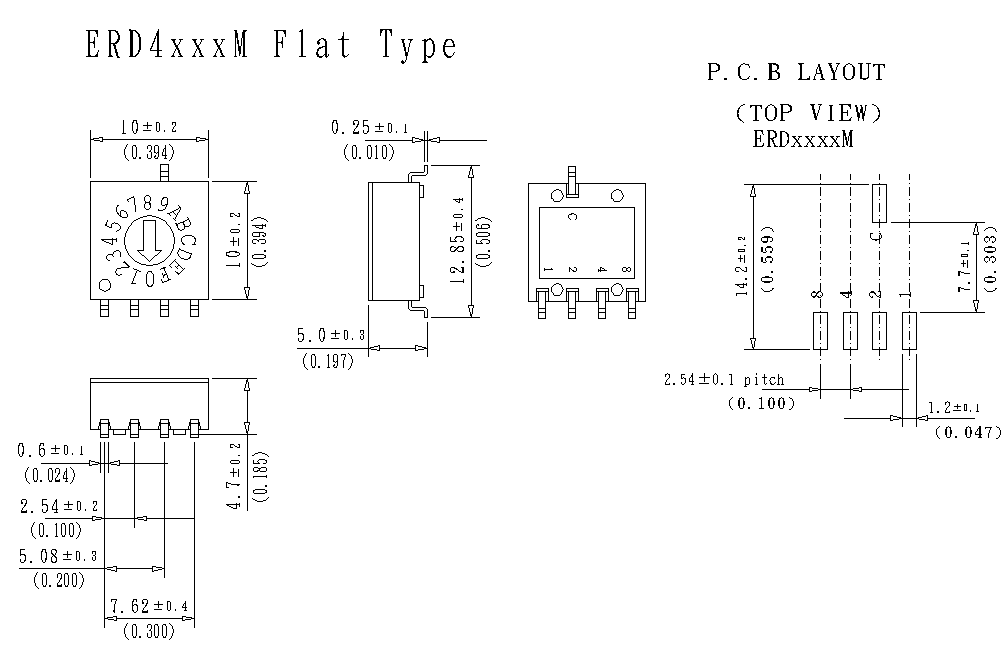

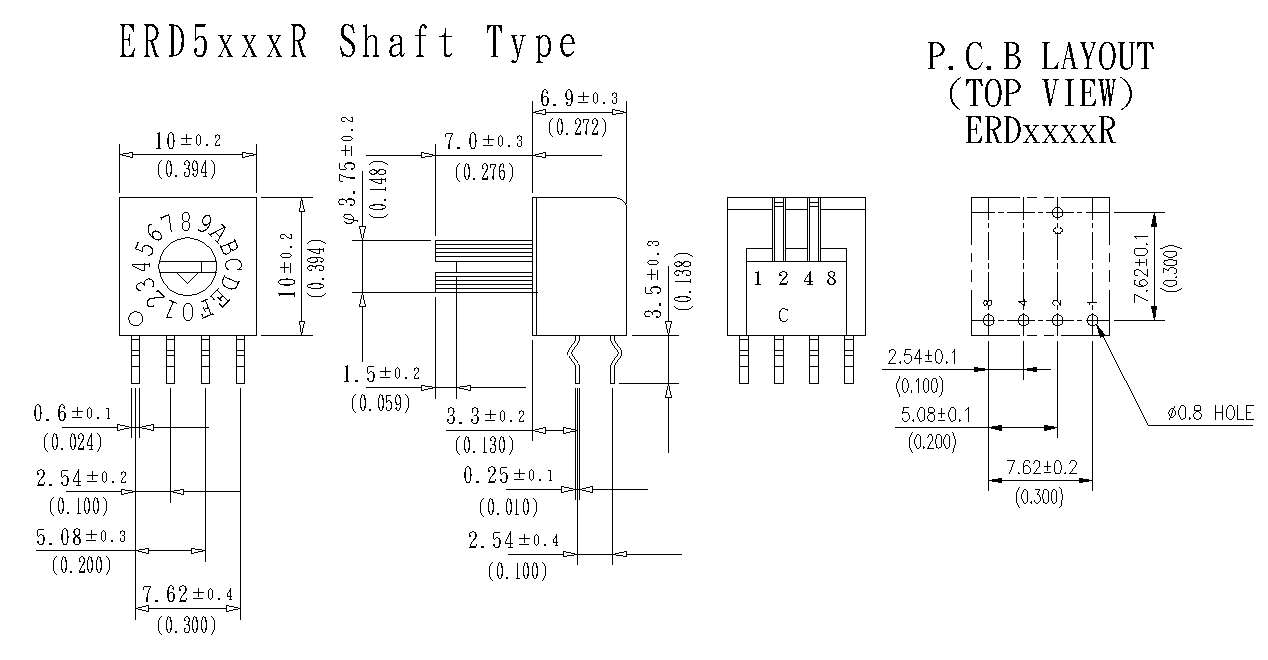

DIMENSIONS AND CIRCUITRY (UNIT: mm)   PIN OUT 1:4

---
