Anreihbarer SMD Dip-Switch Serie ESD und ESL


ESD/ESL SERIES
END-STACKABLE SMT TYPE

PATENT NO.: 47618
41536
4856189(U.S.A.)



FEATURES

  • End stackable for standard 0.1" integrated circuit pitch.
  • Molded 0.3" integrated circuit packing outline allowing automatic insertion.
  • Smaller size makes better heat convection during PC board reflow wave soldering.
  • Top tape sealed to withstand wave soldering, board washing.
  • All plastics are UL 94V-0 grade fire retardant.
  • Twin contacts designed to ensure stable contact.
  • Gold plated contact to ensure low contact resistance and
    Tin plated terminals to prevent contamination during soldering.



SPECIFICATIONS

1.ELECTRICAL

Contact rating
    switching 25 mA, 24 VDC
    non-switching 100 mA, 50 VDC
Contact resistance
    initial 50 m Max.
    after life test 100 m Max.
Insulation resistance 1000 M Min. at 100 VDC
Dielectric strength 500 VDC Min. for 60 seconds
Capacitance between adjacent switches 5 pF Max.

2.MECHANICAL

Temperature rating
   operating -25 to +70
   storage -40 to +85
Operation force 800g Max.
Mechanical life 2000 operations
Humidity 95%RH, 40 for 96 Hrs.
Vibration Per MIL-STD-202F, method 204D
Solderability after flux 2305 for
50.5 seconds, 95% coverage
Resistance to soldering Heat 2605 for 5 seconds.
Reflow soldering heat for SMT type
(reference only)
reflow zone 2305 for
30 seconds



PART NUMBERING SYSTEM

  ESD 1 08 L
   |  |  | |
   |  |  | +--- Actuator, Sealing and Rows Spacing Options:
   |  |  |       L:Low Profile Actuator
   |  |  |       E:Extended Actuator
   |  |  |      LT:Top Tape Sealed & Low Profile Actuator
   |  |  |      LC:Tape & Reel Package, product without
   |  |  |         Top Tape sealed
   |  |  |      LD:Tape & Reel Package, product with
   |  |  |         Top Tape sealed
   |  |  +--- Number of Positions: 1,2,3,4,5,6,7,8,9,10,12
   |  +--- Contact form: SPST
   +--- Series name: ESD:Surface mounting "S" type(Gull Wing)
                     ESL:Surface mounting "L" type(T-Bend)

CONSTRUCTION

ESD

ESL

OPTIONS

1.Special marking and case color available
2.Extended Actuator



3.Top Tape Sealed

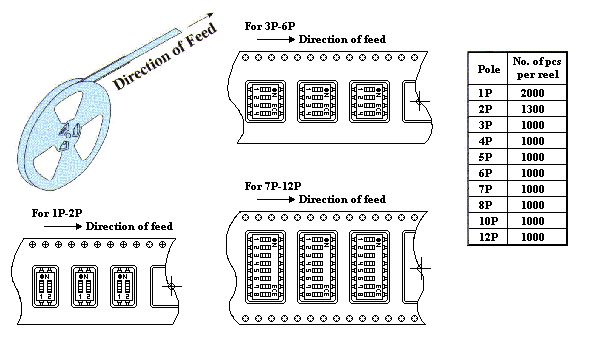

4.Tape & Reel Packaging (per EIA STANDARD)

DIMENSIONS AND CIRCUITRY (UNIT: mm)
