ETD/ETA/ETS SERIES
TRI-STATE TYPE

PATENT NO.:	5065276(U.S.A.)
	47618
	4856189(U.S.A.)

FEATURES

With three state (1, open, 0) setting function, especially suitable for encoding/decoding of tri-state encoder/decoder integrated circuit to obtain more security codes than traditional two-state (1,0) operation. For instance, 9 bits with tri-state gets 19,683 (3⁹) codes, while two-state has 512 (2⁹) codes, gains 38 times more codes with a ECE tri-state DIP Switch.
Bottom sealed to ensure free of flux immersion during wave soldering.
All plastics are UL 94V-0 grade fire retardant.
Gold plated contact to ensure low contact resistance and tin plated terminals to prevent contamination during soldering.
Twin contacts designed to ensure stable contact.
Ideal for coding tele-communication, transceiving, remote control and burglar alarm systems which use integrated circuits with tri-state coding systems.

SPECIFICATIONS

1.ELECTRICAL

Contact rating
switching	25 mA, 24 VDC
non-switching	100 mA, 50 VDC
Contact resistance
initial	50 m Max.
after life test	100 m Max.
Insulation resistance	1000 M Min. at 100 VDC
Dielectric strength	500 VDC Min. for 60 seconds
Capacitance between adjacent switches 5 pF Max.

2.MECHANICAL

Temperature rating
operating	-25 to + 70
storage	-40 to + 85
Operation force	800g Max.
Mechanical life	2000 operations
Humidity	95%RH, 40 for 96 Hrs.
Vibration	Per MIL-STD-202F, method 204D
Solderability	after flux 2305 for 50.5 seconds, 95% coverage
Resistance to soldering heat	2605 for 51 seconds
Reflow soldering heat for SMT type (reference only)	reflow zone 2305 for 30 seconds

PART NUMBERING SYSTEM

ETS 1 08 L T
   | | | | |
   | | | | +--- Option: Blank:Non-Top Tape Sealed
   | | | |            T:Top Tape Sealed
   | | | +--- Actuator: L:Low Profile Actuator
   | | |                E:Extended Actuator
   | | +--- Number of Positions: As Dimensions and Circuitry
   | +--- Contact Form: SPST

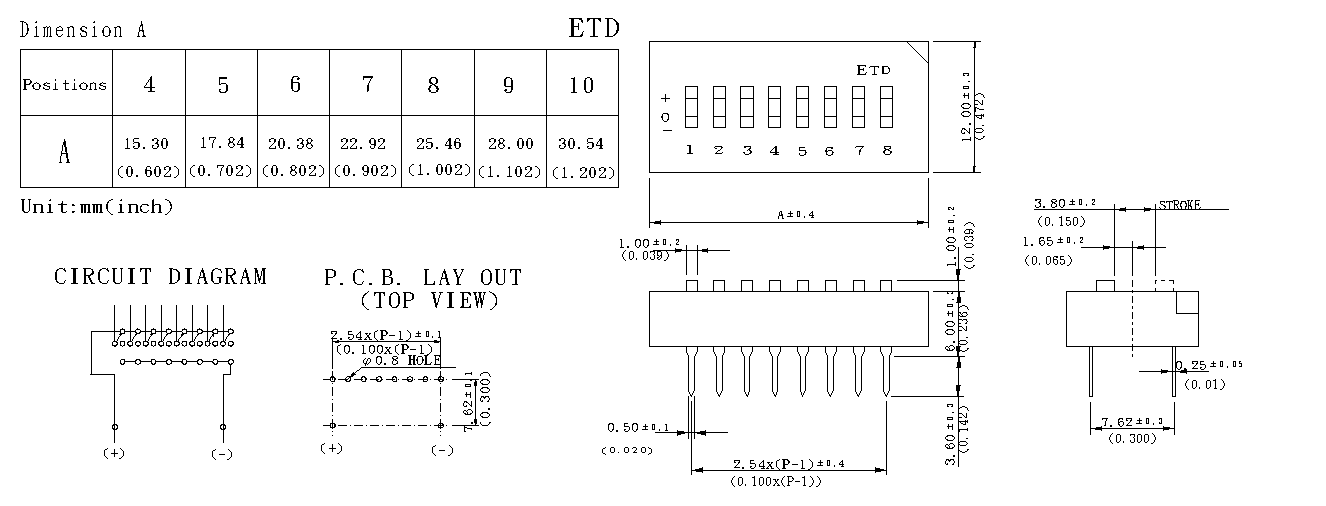

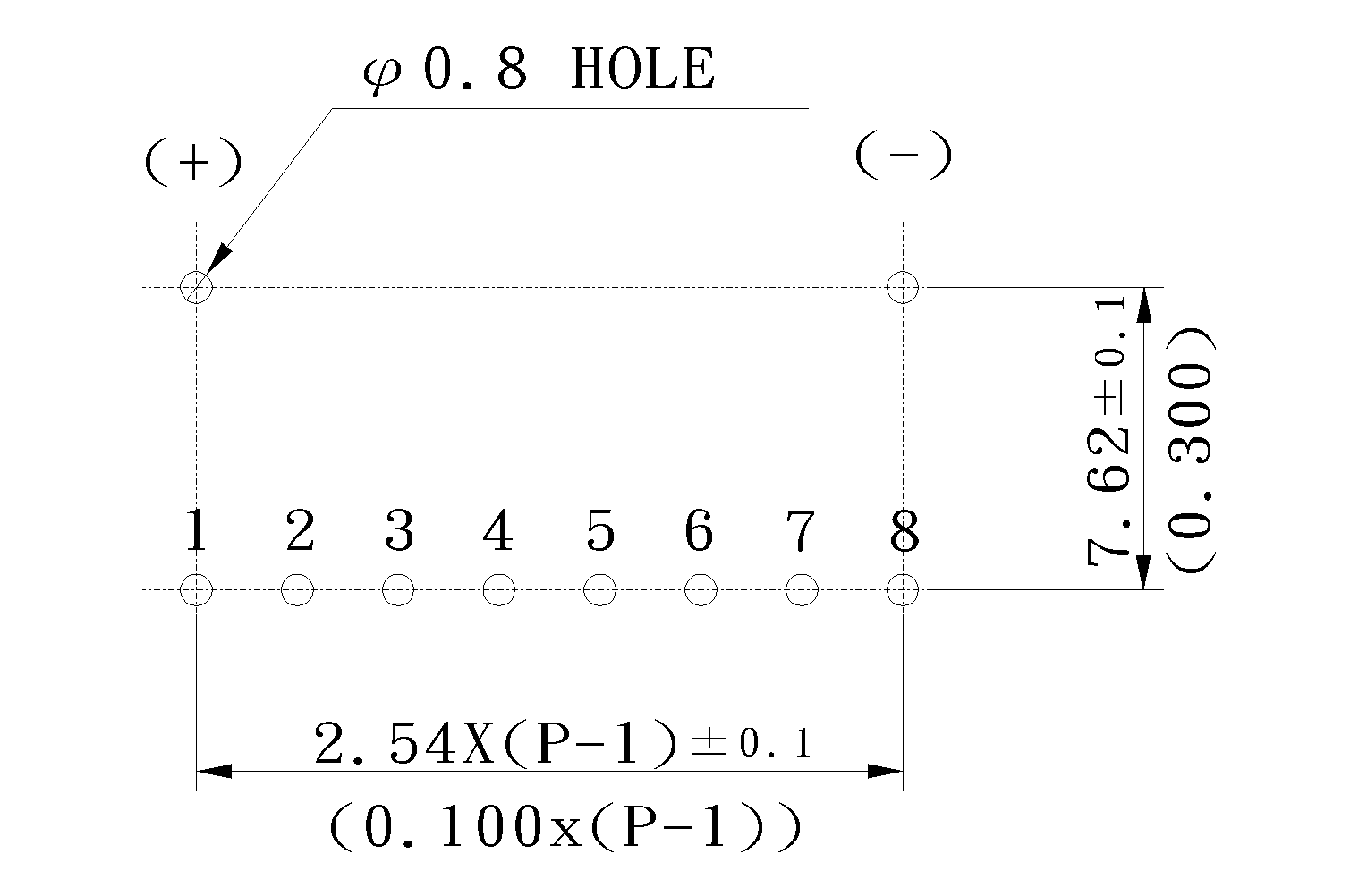

   +--- Series Name: ETD:Bottom Sealed Type

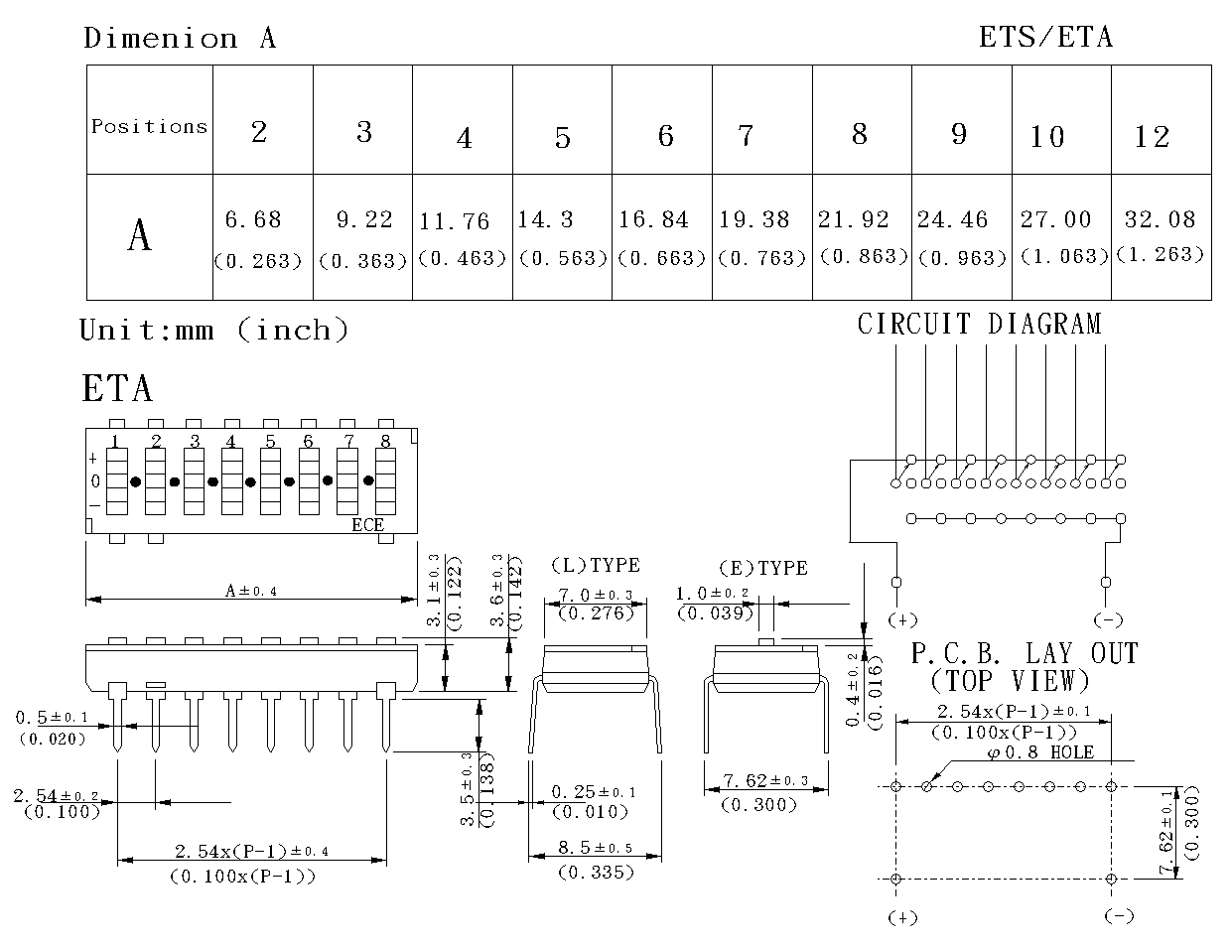

                     ETA:Automatic Inserting Type

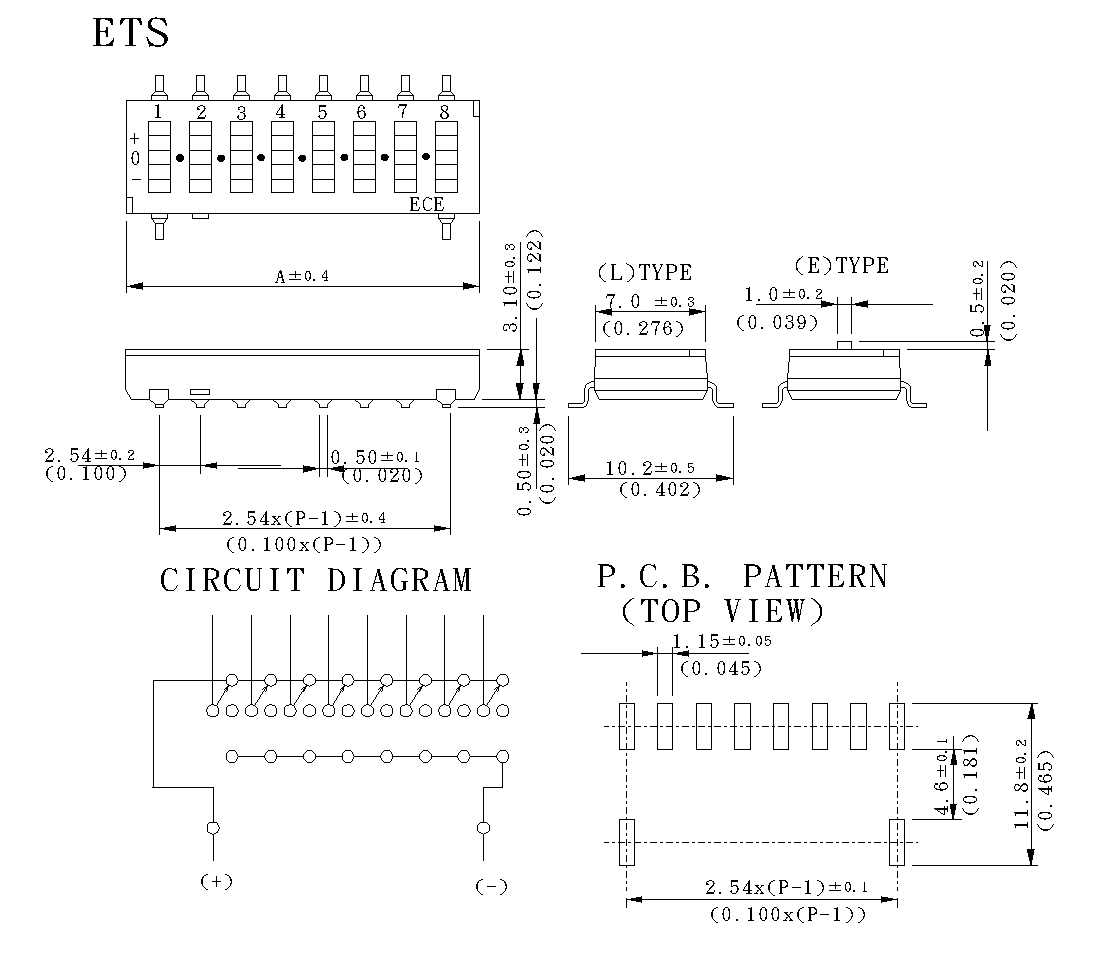

                     ETS:Surface Mounting Type

CONSTRUCTION
