ETD/ETA/ETS SERIES
TRI-STATE TYPE
PATENT NO.: 5065276(U.S.A.)
47618
4856189(U.S.A.)



FEATURES

  • With three state (1, open, 0) setting function, especially suitable for encoding/decoding of tri-state encoder/decoder integrated circuit to obtain more security codes than traditional two-state (1,0) operation. For instance, 9 bits with tri-state gets 19,683 (39) codes, while two-state has 512 (29) codes, gains 38 times more codes with a ECE tri-state DIP Switch.
  • Bottom sealed to ensure free of flux immersion during wave soldering.
  • All plastics are UL 94V-0 grade fire retardant.
  • Gold plated contact to ensure low contact resistance and tin plated terminals to prevent contamination during soldering.
  • Twin contacts designed to ensure stable contact.
  • Ideal for coding tele-communication, transceiving, remote control and burglar alarm systems which use integrated circuits with tri-state coding systems.

SPECIFICATIONS

1.ELECTRICAL

Contact rating
   switching 25 mA, 24 VDC
   non-switching 100 mA, 50 VDC
Contact resistance
   initial 50 m Max.
   after life test 100 m Max.
Insulation resistance 1000 M Min. at 100 VDC
Dielectric strength 500 VDC Min. for 60 seconds
Capacitance between adjacent switches 5 pF Max.

2.MECHANICAL

Temperature rating
   operating -25 to + 70
   storage -40 to + 85
Operation force 800g Max.
Mechanical life 2000 operations
Humidity 95%RH, 40 for 96 Hrs.
Vibration Per MIL-STD-202F, method 204D
Solderability after flux 2305 for
50.5 seconds, 95% coverage
Resistance to soldering heat 2605 for 51 seconds
Reflow soldering heat for SMT type
(reference only)		 reflow zone 2305 for 30 seconds

PART NUMBERING SYSTEM

  ETS 1 08 L T
   |  |  | | |
   |  |  | | +--- Option: Blank:Non-Top Tape Sealed
   |  |  | |              T:Top Tape Sealed
   |  |  | +--- Actuator: L:Low Profile Actuator
   |  |  |                E:Extended Actuator
   |  |  +--- Number of Positions: As Dimensions and Circuitry
   |  +--- Contact Form: SPST
   +--- Series Name: ETD:Bottom Sealed Type
                     ETA:Automatic Inserting Type
                     ETS:Surface Mounting Type

CONSTRUCTION

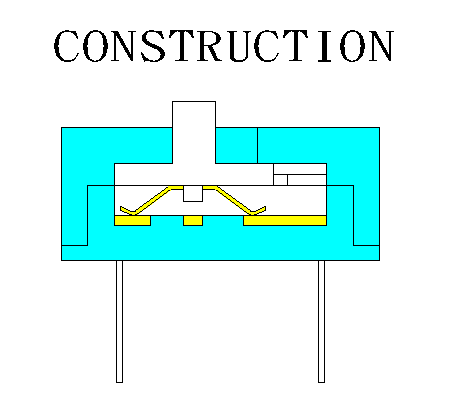

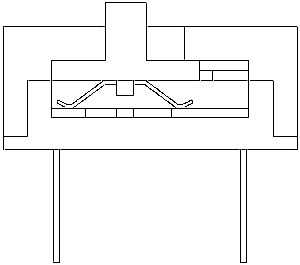

ETD

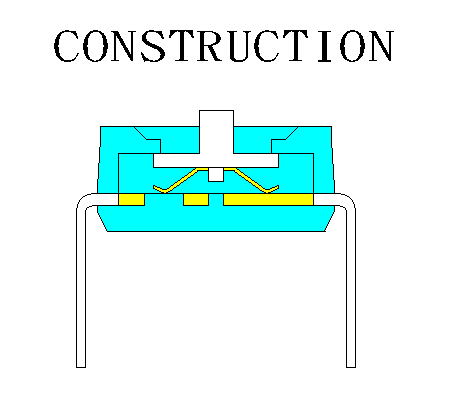

ETA

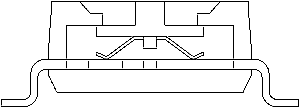

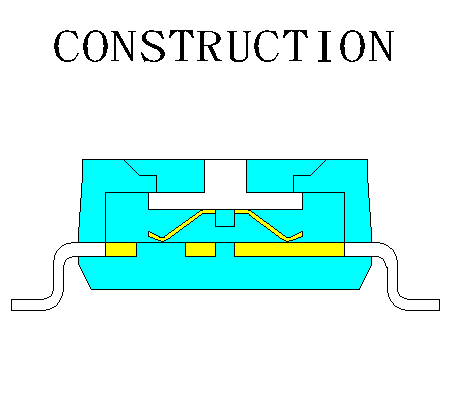

ETS



OPTIONS

1.Tape sealed.
ETDxxxET

ETSxxxLT

ETAxxxLT

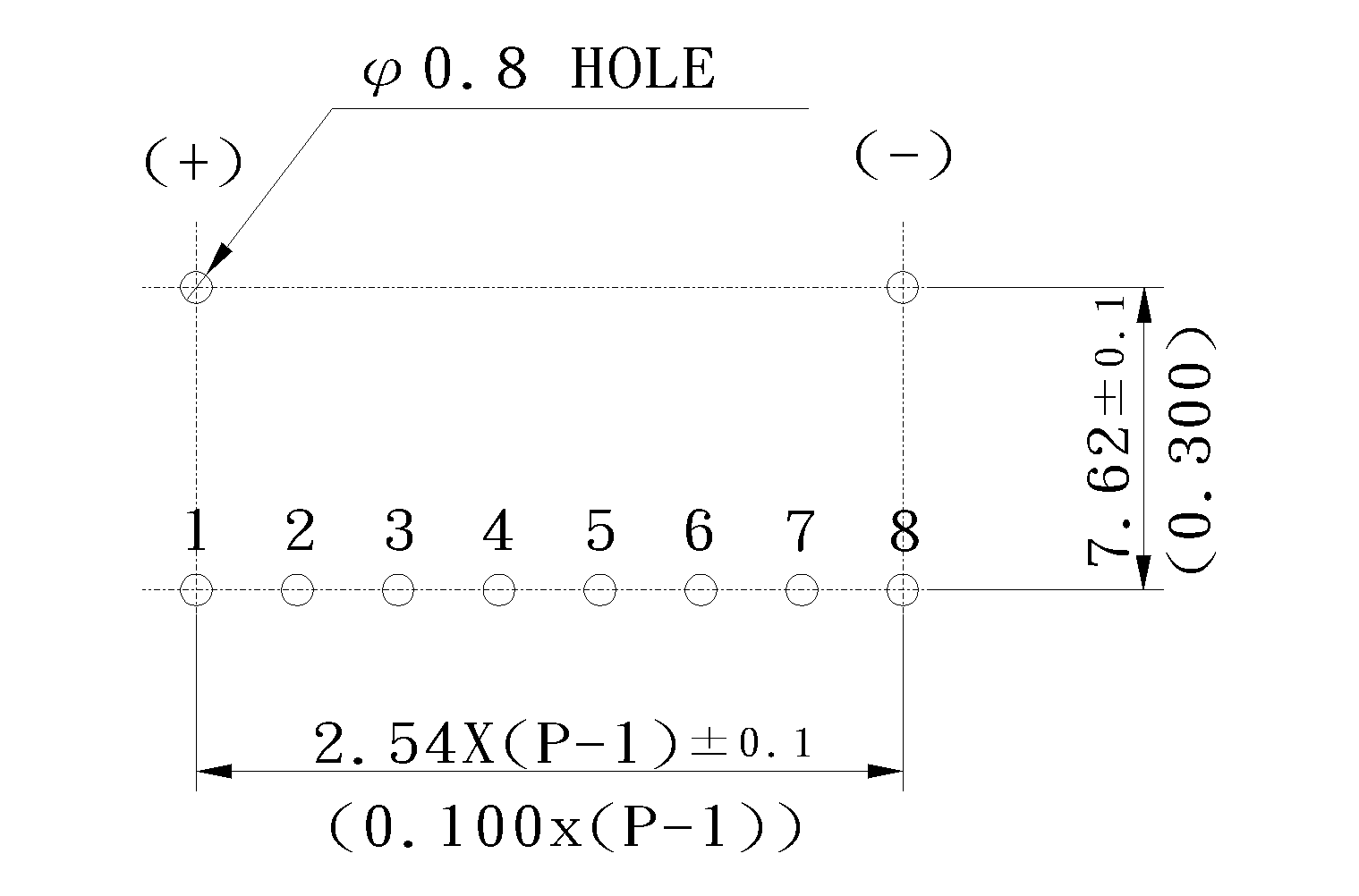

2.Reverse P.C.B. LAYOUT available

DIMENSIONS AND CIRCUITRY (UNIT: mm)

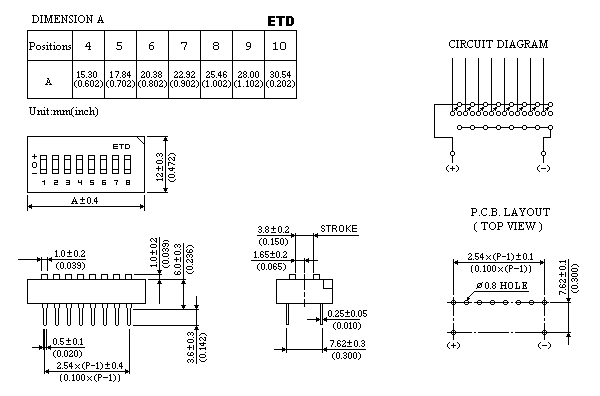

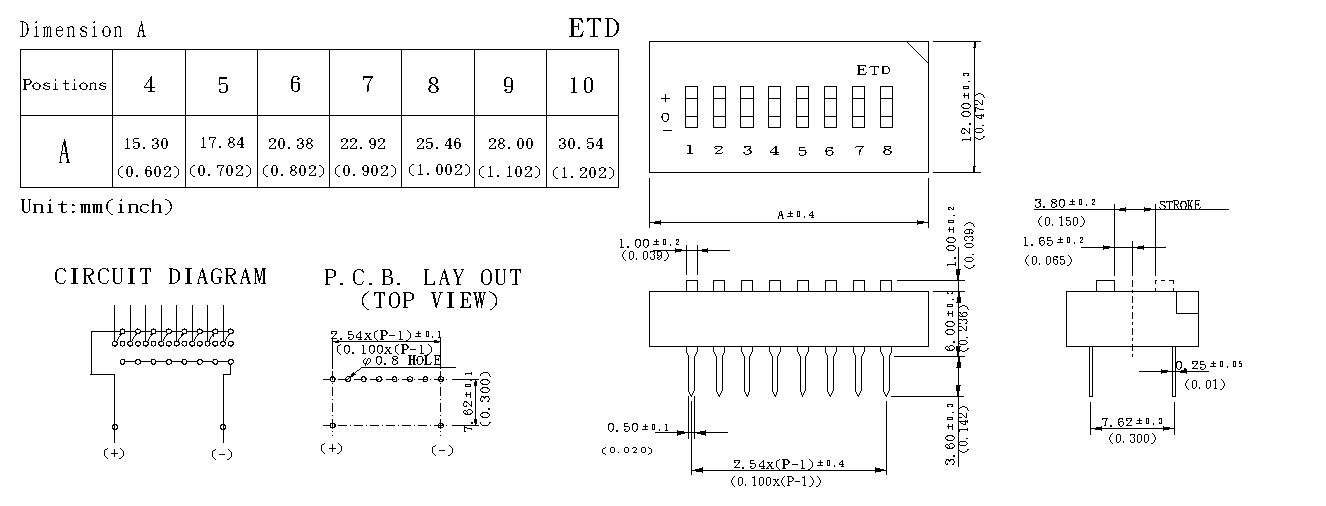

ETD

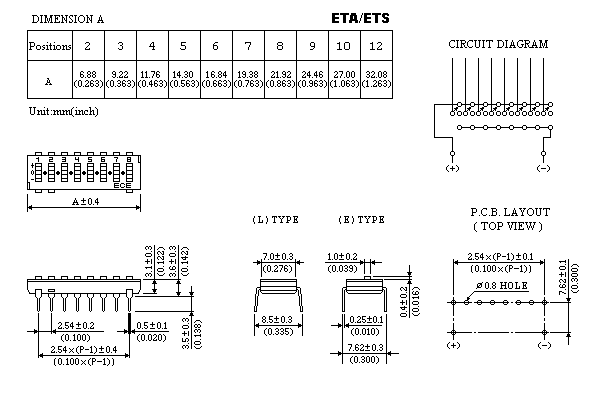

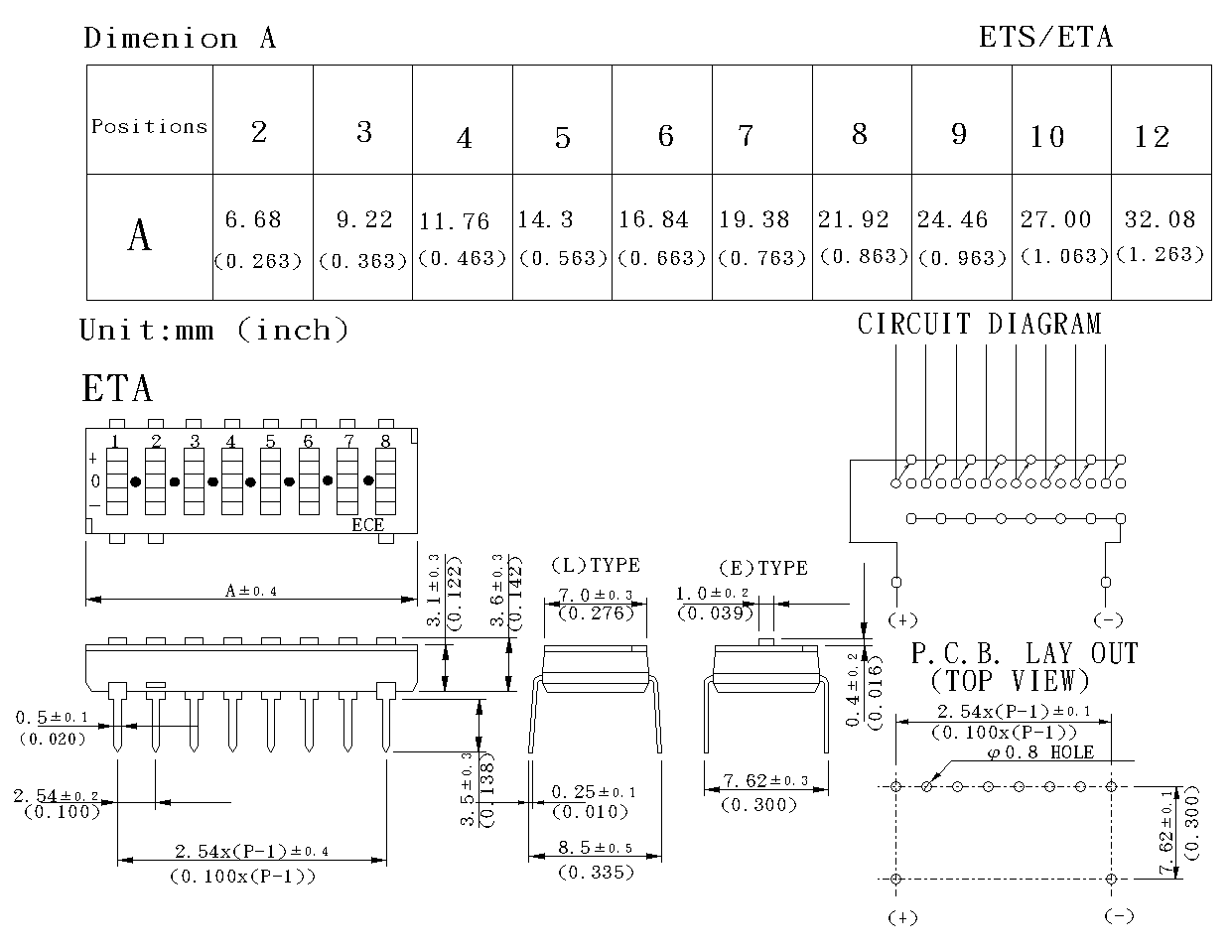

ETA

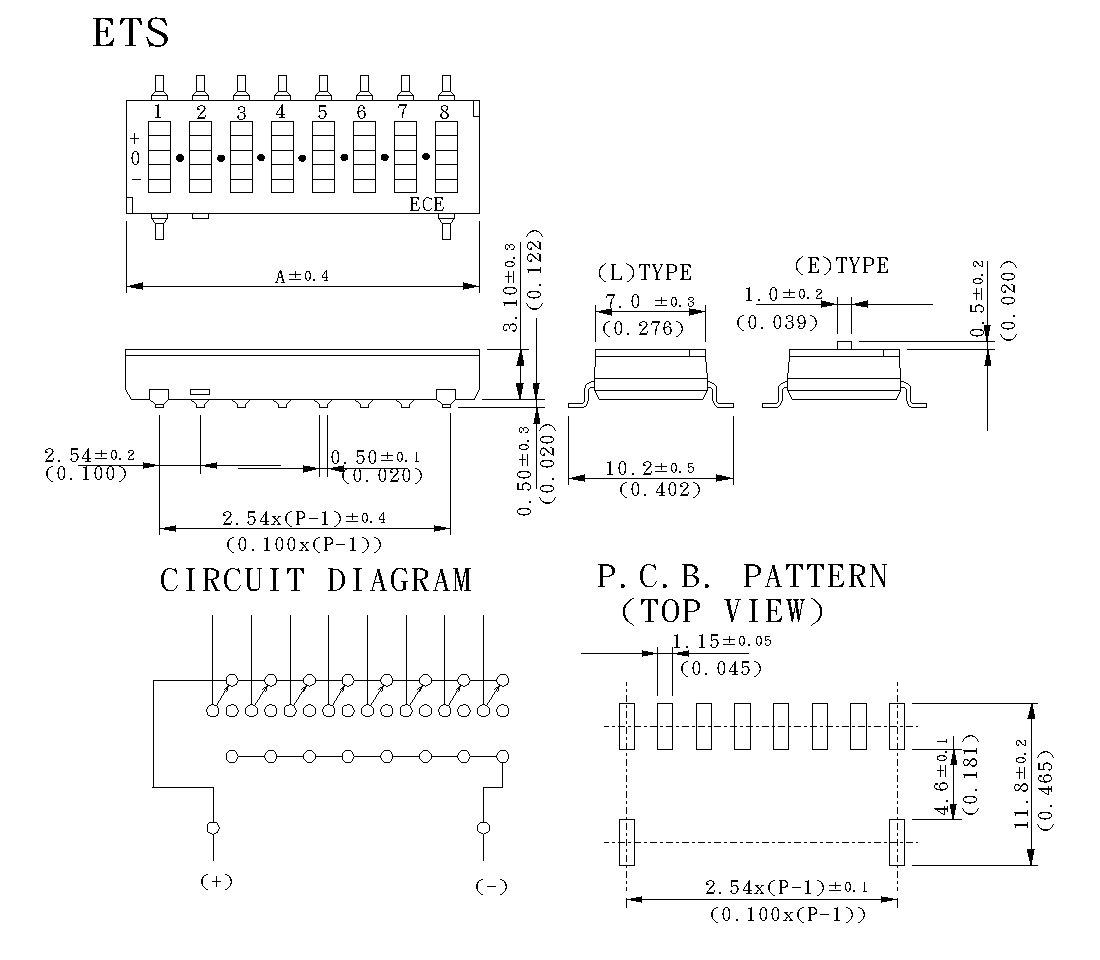

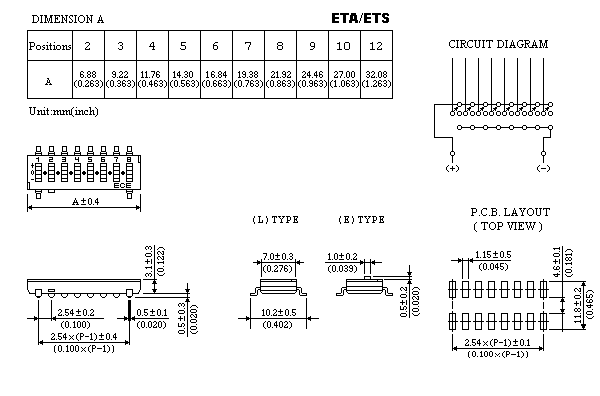

ETS
