ELS SERIES
  FEATURES

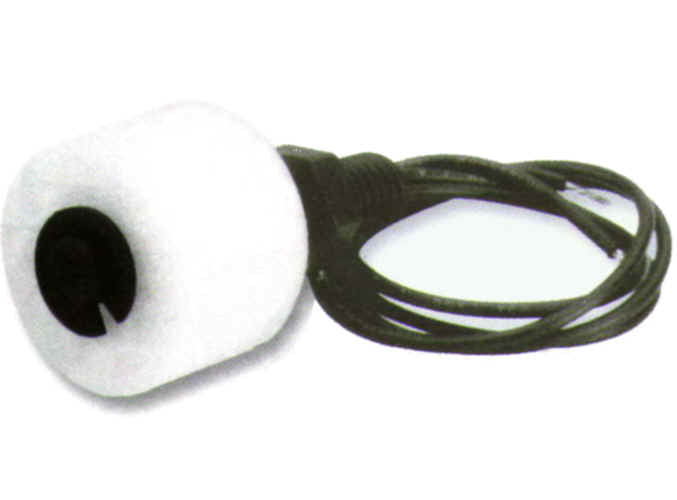

  • This ELS series is sensitive and complete level sensor with float.
  • It can be widely used for simple control function effectively in the level control.
  • The screw thread M81.25 enables a quick and reliable mounting to the position you need.
  • The different length of PVC wire (22 AWG) is available.

  SPECIFICATIONS

Contact Rating:

Switching Current 1.0 ADC Max.
Carry Current 1.5 ADC Max.
Switching Power 10 VA Max.
Contact Resistance 150 m Max.
Contact Material Rhodium
Operate Time 0.6ms Max. Including Bounce Time
Release Time 0.1ms Max.
Maximum Voltage 100 VDC
Breakdown Voltage 250 VDC
Ambient Temperature 0 to +70
Operation Level(Gravity) see Actuation Drawing

Materials

Stem Polyamide
Float Polypropylene Foam
Nut Polyamide
Stopper Polyamide
O-ring Rubber
Lead Wire UL 1007 22 AWG Heat-resistant PVC wire

  PART NUMBERING SYSTEM

  ELS  103  XX
   |    |    |
   |    |    +---- 00: Standard length of lead wire 70mm
   |    |          Option: for different length of lead wire
   |    |
   |    +--------- Type: 103 see ELS ACTUATION
   |                     104 see ELS ACTUATION
   |
   +-------------- Series Name: ELS: level sensor

  DIMENSIONS: UNIT:mm(inch)

  ACTUATION
