FEATURES

Available for round and flat-oval cable.   Plug are available for solid wire        24-26 AWG.   Available for non-shielded and        shielded configurations to avoid EMI/RFI   Deliver speeds up to 100 MHz.

  PART NUMBERING SYSTEM

  EMP 8 8 1 E R 2 0 1 0 0 XX
   |  | | | | | | | | | |  |
   |  | | | | | | | | | |  +----------------- Special Number:
   |  | | | | | | | | | +----------------- Wire Diameter:
   |  | | | | | | | | |                    0:Standard 1.0mm,
   |  | | | | | | | | |                    1:0.9mm, 2:0.8mm, 3:0.7mm
   |  | | | | | | | | +--------------- Type:
   |  | | | | | | | |                  0:Standard, 1:Insert Type
   |  | | | | | | | +-------------- Appearance:
   |  | | | | | | |                 0:Standard, 1:Shielded
   |  | | | | | | +------------- Dimensions:
   |  | | | | | |                0:Standard, S:Short Body, L:Long Body
   |  | | | | | +------------ Material:
   |  | | | | |               0:94-V0, 2:94-V2
   |  | | | | +---------- Cable Application:
   |  | | | |             R:For Round Cable Type
   |  | | | |             F:For Flat-Oval Cable Type
   |  | | | +-------- Selective Gold Plating Thickness:
   |  | | |           A:3" B:6" C:15" D:30" E:50"
   |  | | +------ Contact Blade Specifications:
   |  | |         1:For stranded wire
   |  | |         2:2 prongs contacts
   |  | |         3:3 prongs contacts
   |  | +----- Number of Contacts: 2,3,4,5,6,7,8,9,A:10
   |  +--- Number of Positions: 4,6,8,A:10
   +--- Series Name: EMP

  SPECIFICATIONS

Electric test     A. 150 VAC Max., at 1.5 Amps.     B. Dielectric with standing 500 VAC.     C. Insulation Resistance: 500 M.     D. Termination Resistance: 35 m. Mechanical:     A. Cable-to-plug tensile          strength-20LBs(89N) Min..     B. Durability: 500 mating cycles.

Material and Finished:      Housing: Polycarbonate, UL94-V0                                            UL94-V2      Contact: Phosphor bronze, selective gold                    plated in contact area over                    100" nickel plated.      Shield: Nickel plated, brass. Operating Temperature:      -40 +125

  DIMENSIONS

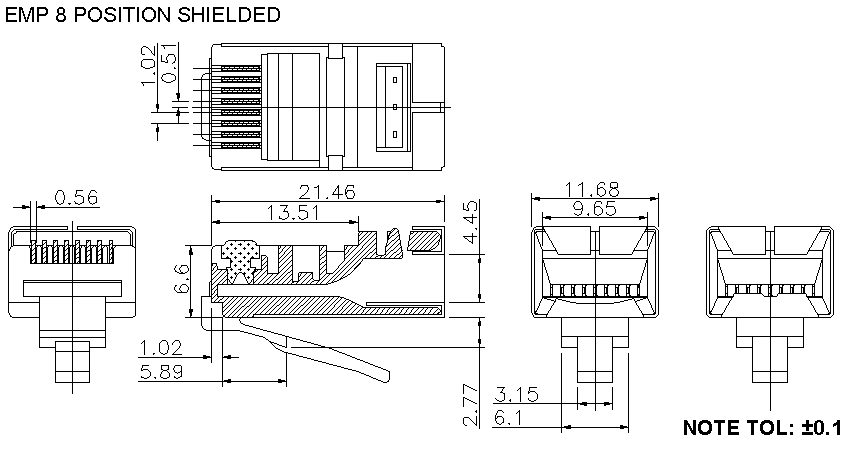

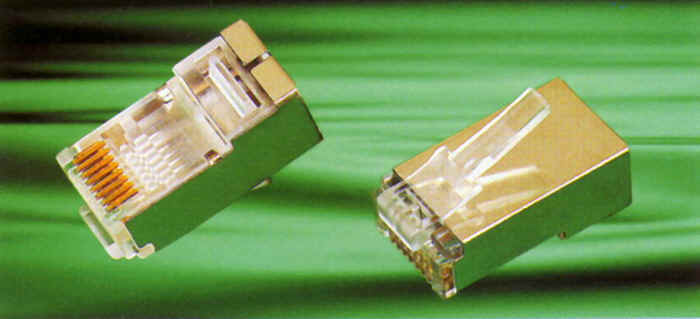

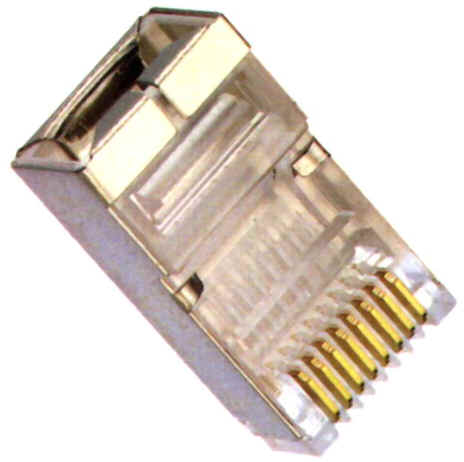

EMP 8 POSITION SHIELDED

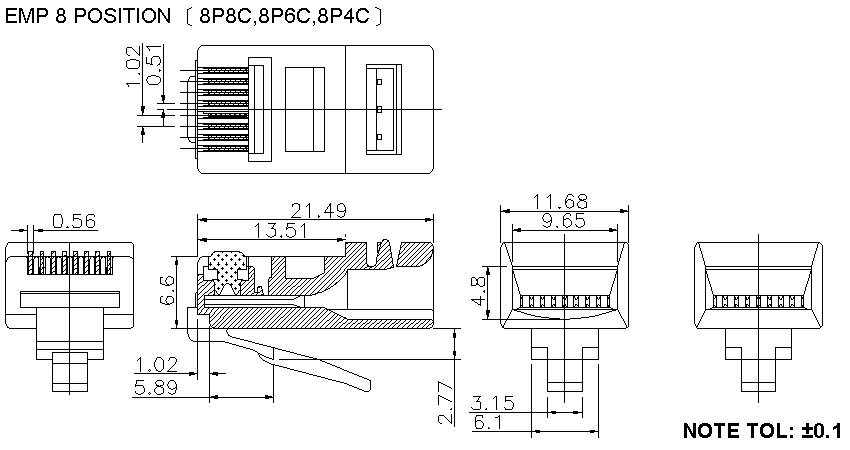

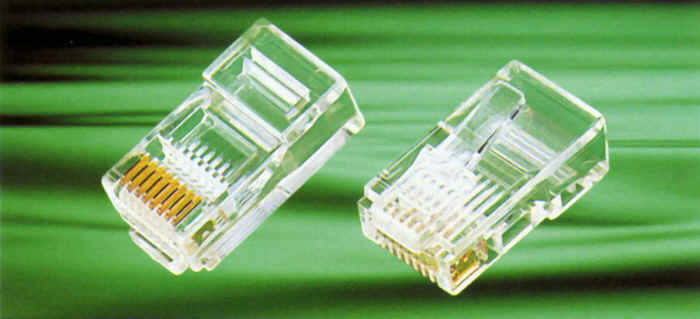

EMP 8 POSITION [8P8C,8P6C,8P4C] . . . . . .

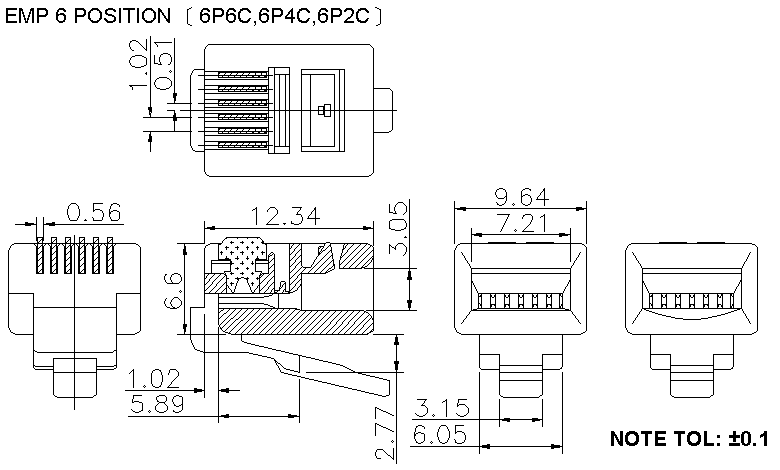

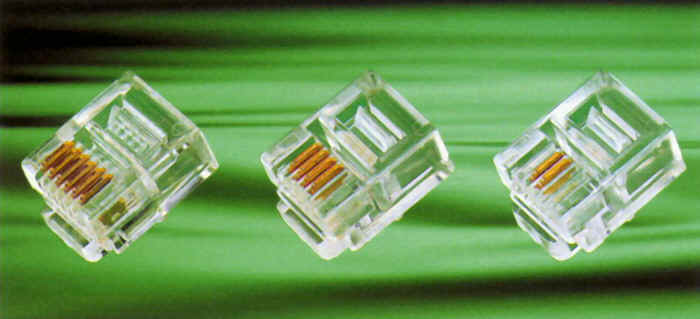

EMP 6 POSITION [6P6C,6P4C,6P2C] . . . . . .

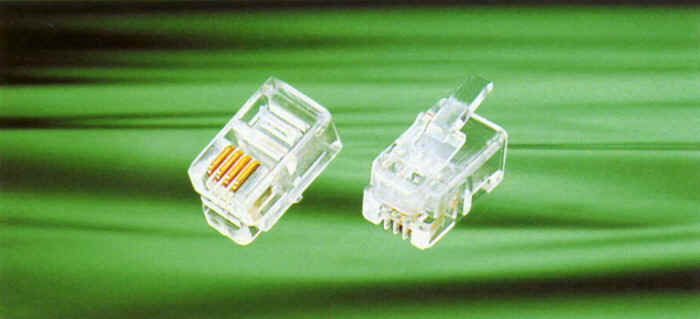

EMP 4 POSITION [4P4C,4P2C] . . . . . . . . . . . .

  CONTACT BLADE
