DC POWER JACK
EPJ 3  SERIES
FEATURES
  • Smallest size, lightest weights and very low profile design.
  • Applied on audio systems and electronic apparatus.
  • All materials are UL 94V-O grade fire retardant plastics.
  • Applied on the high temperature plastic for reflow soldering process.


MODEL: 245S

SPECIFICATIONS

  • Contact rating: Rated Voltage: 5VDC
                          Rated Current: 2A, DC
  • Temperature rating: Operating temperature range: -25 ~ +85

1.ELECTRICAL DATA

No.

Test description

Requirement

Test method

1

Insulation resistance

100 M Min.

(1)Test voltage: 250VDC10 VDC
(2)Point Between open contact.

2

Dielectric strength

No disruptive discharge
Leakage Current: 2mA Max.

(1)Test voltage: 250VAC
(2)Duration: 60sec
(3)Point Between open contact.

3

Contact resistance

PLUG TO CONTACT:
Initial: 50m Max.
After life: 100m Max.
CONTACT TO SHUNT:
Initial: 30 m Max.
After life: 60m Max.

 (1)4 terminals method
(2)Test current: 1A, DC

2.MECHANICAL DATA

No.

Test description

Requirement

Test method

1

Mating/unmating force

Initial:
0.3~2.0Kgf (3~20N) Max.
After life:
0.2~2.0Kgf (2~20N) Max.

To measure necessary for plug and jack mating/unmating

2

Terminal strength



Any outstanding damage shall not be found. Bend of terminal is acceptable.

Test condition:
0.5kgf(5N) 10sec

PART NUMBERING SYSTEM

  EPJ  3  245  1  0  XX
   |   |   |   |  |   |
   |   |   |   |  |   +--- Special Code
   |   |   |   |  +--- Package
   |   |   |   |       0:Tape & Reel
   |   |   |   |       1:IC Tube
   |   |   |   +--- Color: 1:Black
   |   |   +--- Model: 245:245S
   |   +--- Type: 3:DC Power Jack
   +--- Series name: EPJ Series

PACKING

1.Packing method
  • All jacks are packed into ploy bags and then packed into boxes.
  • All jacks may be packed using tape & reel methods.
2.Information on label (stuck to each ploy bag, reel and box)
  • Part NO.
  • Description
  • Lot NO.
  • Quantity
  • Tester NO.
  • Reprocess NO.
  • QC stamp
  • Date
  • ECE mark
  • Manufacturers name

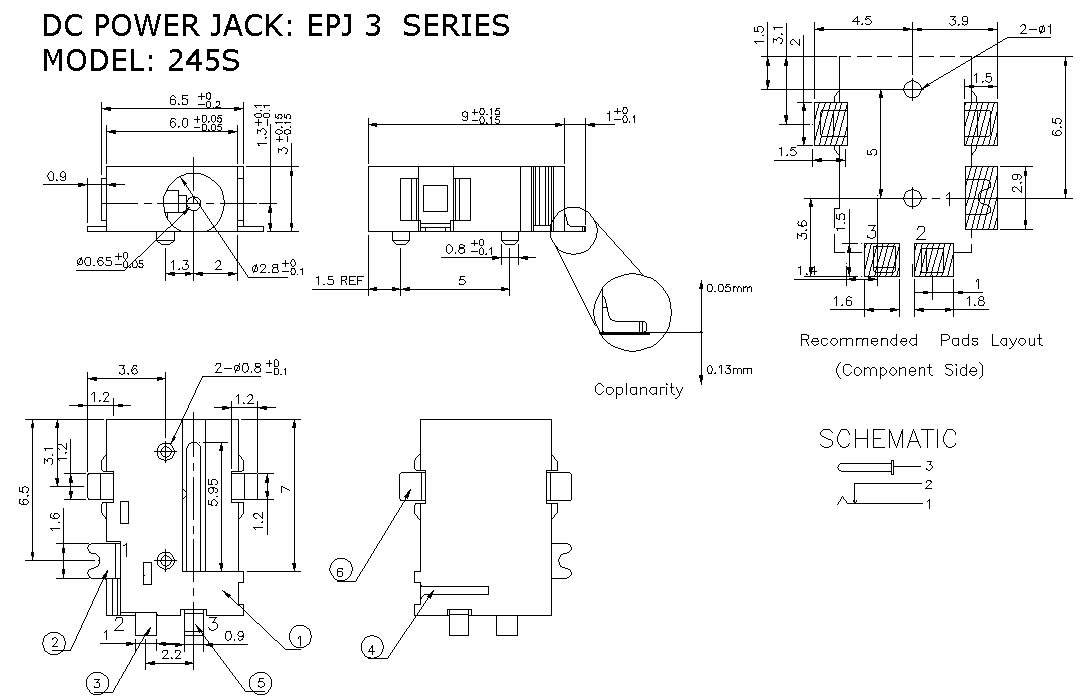

DRAWING
