PHOTO MOS RELAY
EPR SERIES

E155181(R)



SOP TYPE
4 PIN 6 PIN 8 PIN

FEATURES

  • No EMI/RFI generation
  • High reliability
  • No moving parts
  • Low drive power requirement (TTL/CMOS compatible)
  • Low On-state resistance
  • 3750 Voltage input/output isolation (1500V isolation for SO-package)
  • Arc-free with no snubbing circuits
  • Machine insertable or wave solderable

APPLICATION

  • Telecommunications
  • Instrumentation
  • Medical equipment
  • Security
  • Industrial control

PART NUMBERING SYSTEM

  EPR 4 1 1A 40 4 0 0
   |  | |  |  | | | |
   |  | |  |  | | | +------ Special number: 0:Standard
   |  | |  |  | | +------ Packing: 0:IC Tube, 1:Tape & Reel
   |  | |  |  | +------ Pin out: 4:4pin, 6:6pin, 8:8pin
   |  | |  |  +------ Load voltage: 06:60V,  10:100V
   |  | |  |                        20:200V, 40:400V
   |  | |  +----- Contact type: 1A:1 form A, 1B:1 form B
   |  | |                       1C:1 form A, 1 form B
   |  | |                       2A:2 form A, 2B:2 form B
   |  | +---- Load type: 0:DC,  1:AC&DC
   |  +--- Package type: 2:DIP, 3:SMD, 4:SOP
   +-- Series name: EPR: PHOTO MOS RELAY

MARKING SYSTEM

  EPR 6 1A 40 T
   |  |  |  | |
   |  |  |  | +-------- Packing: T:through hole
   |  |  |  |                    M:SMD type
   |  |  |  |                    S:SOP type
   |  |  |  +----- Load voltage: 06:60V,  10:100V
   |  |  |                       20:200V, 40:400V
   |  |  +----- Contact type: 1A:1 form A, 1B:1 form B
   |  |                       1C:1 form A, 1 form B
   |  |                       2A:2 form A, 2B:2 form B
   |  +--- Pin number: 4:4pin, 6:6pin, 8:8pin
   +--- Model name: EPR

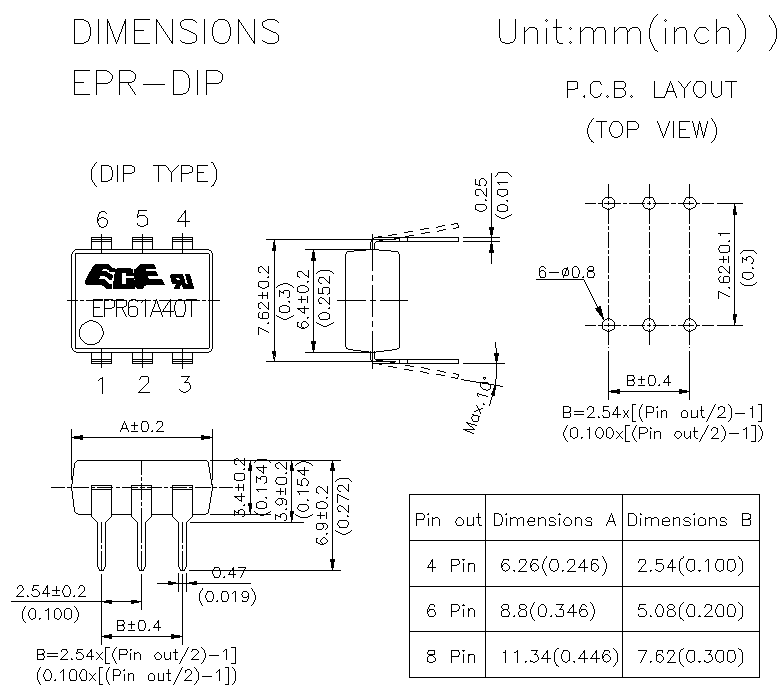

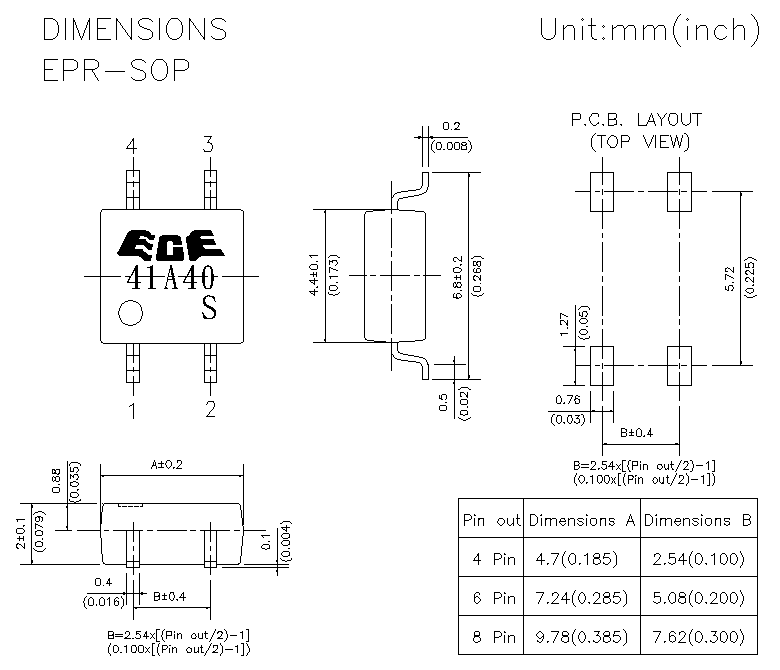

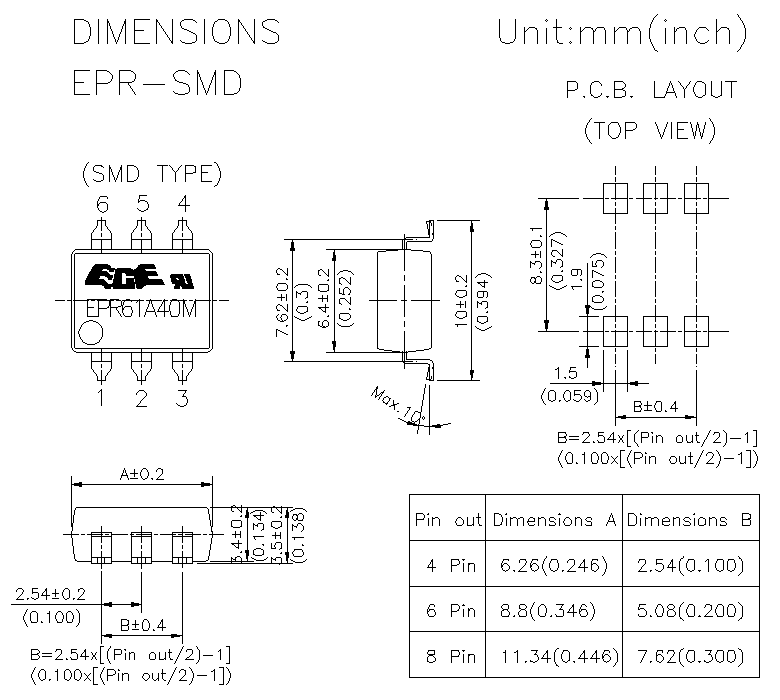

DIMENSIONS

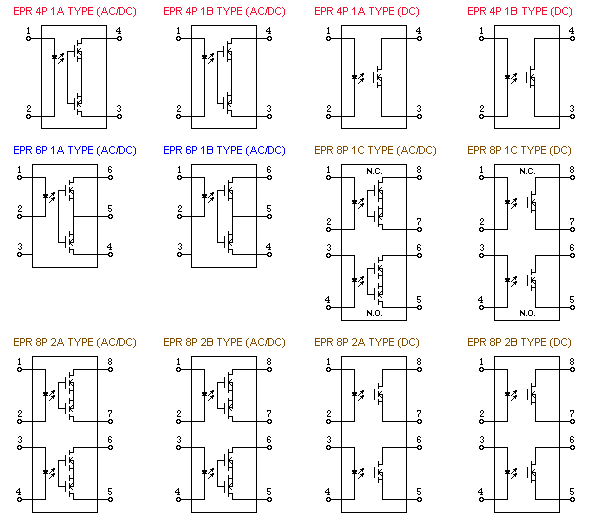

CIRCUIT DIAGRAM

SPECIFICATIONS(@25oC)

Pin number

4 PIN
Part number EPRxx1A104 EPRxx1A204 EPRxx1A404 EPRxx1B404
Contact form 1A 1A 1A 1B

                                                          Input Characteristics
Forward voltage (V) 0.9-1.5 0.9-1.5 0.9-1.5 0.9-1.5
Reverse voltage (V) 5 5 5 5
Control current (mA) 5-50 5-50 5-50 5-50

                                                        Output Characteristics
Load voltage (V)
(AC peak or DC)

100

200

 400

400

Continuous rated
load current (mA)

 DIP/SMD 250 200 130 100
SOP 200 150 100 80
Peak current (mA) DIP/SMD 500 400 300 250
SOP 400 300 240 200
On-state resistance
Max. () 		Load type:
AC&DC		 5 10 30 50
Load type:
DC		 2.5 5 15 25
Off-state leakage current (A) 10 1 1 10
Ton Max. (msec) 1 1 1 1
Toff Max. (msec) 1 1 1 2
Capacitance (pF) 70 70 70 150

                                                           Input/ Output Characteristics
I/O Capacitance (pF) 5 5 5 5
I/O Isolation
voltage (VAC) 		DIP/SMD 3750 3750 3750 3750
SOP 1500 1500 1500 1500
I/O Isolation resistance(G) 10 10 10 10

Pin number

6 PIN
Part number EPRx11A106 EPRx11A206 EPRx11A406 EPRx11B406
Contact form 1A 1A 1A 1B

                                                          Input Characteristics
Forward voltage (V) 0.9-1.5 0.9-1.5 0.9-1.5 0.9-1.5
Reverse voltage (V) 5 5 5 5
Control current (mA) 5-50 5-50 5-50 5-50

                                                        Output Characteristics
Load voltage (V)
(AC peak or DC)

100

200

 400

400

Continuous rated
load current (mA)

 DIP/SMD 250 200 130 100
SOP --- --- --- ---
Peak current (mA) DIP/SMD 500 400 300 250
SOP --- --- --- ---
On-state resistance
Max. () 		Load type:
AC&DC		 5 10 30 50
Load type:
DC		 --- --- --- ---
Off-state leakage current (A) 10 1 1 10
Ton Max. (msec) 1 1 1 1
Toff Max. (msec) 1 1 1 2
Capacitance (pF) 70 70 70 150

                                                           Input/ Output Characteristics
I/O Capacitance (pF) 5 5 5 5
I/O Isolation
voltage (VAC) 		DIP/SMD 3750 3750 3750 3750
I/O Isolation resistance(G) 10 10 10 10

Pin number

8 PIN
Part number EPRxx2A108 EPRxx2A208 EPRxx2A408 EPRxx2B408 EPRxx1C408
Contact form 2A 2A 2A 2B 1A 1B

                                                          Input Characteristics
Forward voltage (V) 0.9-1.5 0.9-1.5 0.9-1.5 0.9-1.5 0.9-1.5 0.9-1.5
Reverse voltage (V) 5 5 5 5 5 5
Control current (mA) 5-50 5-50 5-50 5-50 5-50 5-50

                                                        Output Characteristics
Load voltage (V)
(AC peak or DC)

100

200

 400

400

 400 400

Continuous
rated load
current (mA)

 DIP/SMD 250 200 130 100 130 100
SOP 200 150 100 80 100 80
Peak current (mA) DIP/SMD 500 400 300 250 300 250
SOP 400 300 240 200 240 200
On-state
resistance
Max. () 		Load type:
AC&DC		 5 10 30 50 30 50
Load type:
DC		 2.5 5 15 25 15 25
Off-state leakage current (A) 10 1 1 10 1 10
Ton Max. (msec) 1 1 1 1 1 1
Toff Max. (msec) 1 1 1 2 1 2
Capacitance (pF) 70 70 70 150 70 150

                                                           Input/ Output Characteristics
I/O Capacitance (pF) 5 5 5 5 5 5
I/O Isolation
voltage (VAC) 		DIP/SMD 3750 3750 3750 3750 3750 3750
SOP 1500 1500 1500 1500 1500 1500
I/O Isolation resistance(G) 10 10 10 10 10 10
