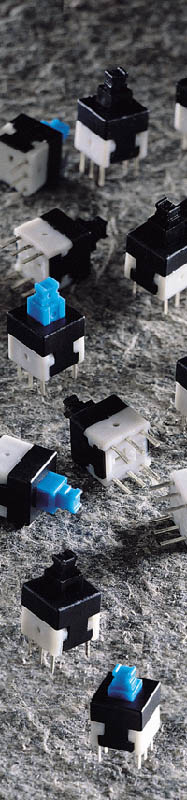

| FEATURES  Light operating force.
Long term low
contact resistance.
Momentary or
latching operation.
Short stroke 1.5
mm to latch.
Compact spacing on
PCB of 8.0 mm.
SPECIFICATIONS
| ELECTRICAL |
| Contact rating |
0.1A 30 VDC |
| Contact resistance |
30 m Max |
| Insulation resistance |
100 M Min. at 500 VDC |
| Dielectric strenght |
250 VAC Min. for 60 sec. |
| Contact bounce |
5.0 ms Max. |
| MECHANICAL AND ENVIRONMENTAL |
Temperature rating
operating
storage |
-25 to +65
-40 to +85 |
| Operation force |
150 ± 80 gms |
| Stroke |
Lock Stroke 1.5 ± 0.2 mm
Full Stroke 2.5 ± 0.2 mm |
| Operating life (full
load) |
1 x 104 cycles |
| Operating life (no load) |
1 x 105 cycles |
| Contact form |
DPDT |
PART NUMBERING
SYSTEM
EPU 01 2 2
P
| | | | +--- Teminal From:
| | | | P:PC Terminal
| | | | H:PC-H Terminal
| | | | V:PC-V Terminal
| | | +--- Contact From:
| | | 1:ON-OFF
| | | 2:ON-ON
| | +--- Number of Pole
| +--- Series:
| 00:Non-Lock (Blue Top Cover)
| 01:Lock (Black Top Cover)
+--- Series Name: EPU |
