ESB 0 SERIES

USB CONNECTOR & CABLE
ESB 0 SERIES (CONNECTOR)

PATENT NO. :

139315
148380
ZL97250960.7 (CHINA)
ZL97243965.X(CHINA)

FEATURES

Raised design provides easy insertion and withdrawal, and guarantee even high reliability.
Design of three certain restraints provides robustious structure.
Gold plated contact to ensure low contact resistance.
All materials are UL 94V-0 grade fire retardant.
Up to 5 meters per cable segment.
To make sure your connections are perfect every time.

SPECIFICATIONS

ELECTRICAL		MECHANICAL
Voltage rating	30 VAC(rms)	Durability	1500 cycles
Current rating	1 Amp	Mating force	35N Max.
Contact resistance	30 m Max.	Unmating force	2.9N Min.
Insulation resistance	1000 M Min.	Temperature	storage -40 to +60 operating 0 to +40
Dielectric strength	750 VAC Min.	Temperature	storage -40 to +60 operating 0 to +40

PART NUMBERING SYSTEM

ESB 0 X X X X X X X
   |   | | | | | | | |
   |   | | | | | | | +--------- Special Code
   |   | | | | | | +-------- 0:Standard
   |   | | | | | |            1:No ECE Mark
   |   | | | | | +-------- Terminal Type: 0:Standard
   |   | | | | |                           1:Straight pin
   |   | | | | +-------- 0:Without shield
   |   | | | |          1:With shield
   |   | | | +------- Color: 0:Black
   |   | | |                1:White
   |   | | +------ Port Type: 1:Single Port
   |   | |                     2:Double Port
   |   | +------ Setting: 1:A Type
   |   |               2:B Type
   |   +---- Contact Type: 0:USB Connector
   +---- Model Name: ESB Series

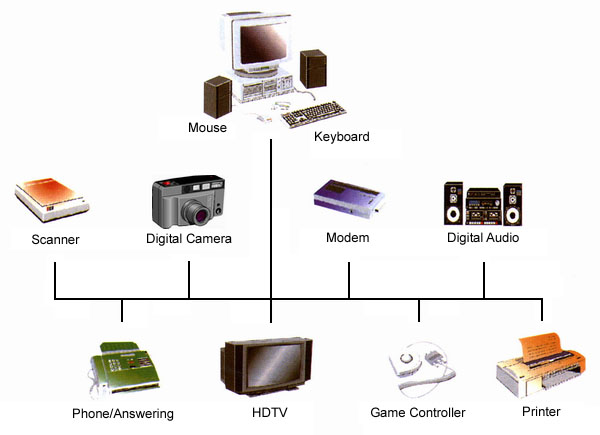

USB CONNECTOR APPLICATION EXAMPLES

DIMENSIONS (UNIT: mm)

RIGHT ANGLE TYPE

A TYPE Single Port ESB 011
A TYPE Double Port ESB 012
B TYPE ESB 021

RIGHT ANGLE TYPE / WITH SHIELD

A TYPE Single port ESB 011x1
A TYPE Double port ESB 012x1
B TYPE ESB 021x1

STRAIGHT PIN TYPE

B TYPE
ESB 021x01
