IEEE1394 CONNECTOR & CABLE
ESB 6 SERIES (CONNECTOR)

FEATURES

  • Raised design provides easy insertion and withdrawal, and guarantee even high reliability.
  • Gold plated contact ensure low contact resistance.
  • All plastics are UL 94V-0 grade fire retardant .
  • Up to 4.5 meters per cable segment.
  • To make sure your connections are perfect every time.

SPECIFICATIONS

ELECTRICAL

MECHANICAL
Contact resistance 30 m Max. Durability 1500 cycles
Insulation resistance 100 M Min. Unmating force 9.8N Min., 39.2N Max.
Dielectric strength 500 VDC Min. Temperature storage -40 to +60
operating 0 to +40

ENVIRONMENTAL
Thermal shock -55 to +85, 5cycles. Vibration No discontinuities of
1s or longer duration.
Temperature life 85 for 250 hours.
Humidity 96 hours at 40 with
90% to 95%RH.		 Mechanical shock No discontinuities of
1s or longer duration.

PART NUMBERING SYSTEM

  ESB  6  6  1  0  1  0  0  X
   |   |  |  |  |  |  |  |  |
   |   |  |  |  |  |  |  |  +-------- Special Code
   |   |  |  |  |  |  |  +------- 0:Standard
   |   |  |  |  |  |  |           1:No ECE Mark
   |   |  |  |  |  |  +------- Terminal Type: 0:Standard
   |   |  |  |  |  +------- 1:With shield
   |   |  |  |  +------- Color: 0:Black
   |   |  |  |                  1:White
   |   |  |  +------ Port Type: 1:Single Port
   |   |  +------ Setting: 6:Surface Mount Type
   |   +---- Contact Type: 6:IEEE1394 Connector
   +---- Model Name: ESB Series

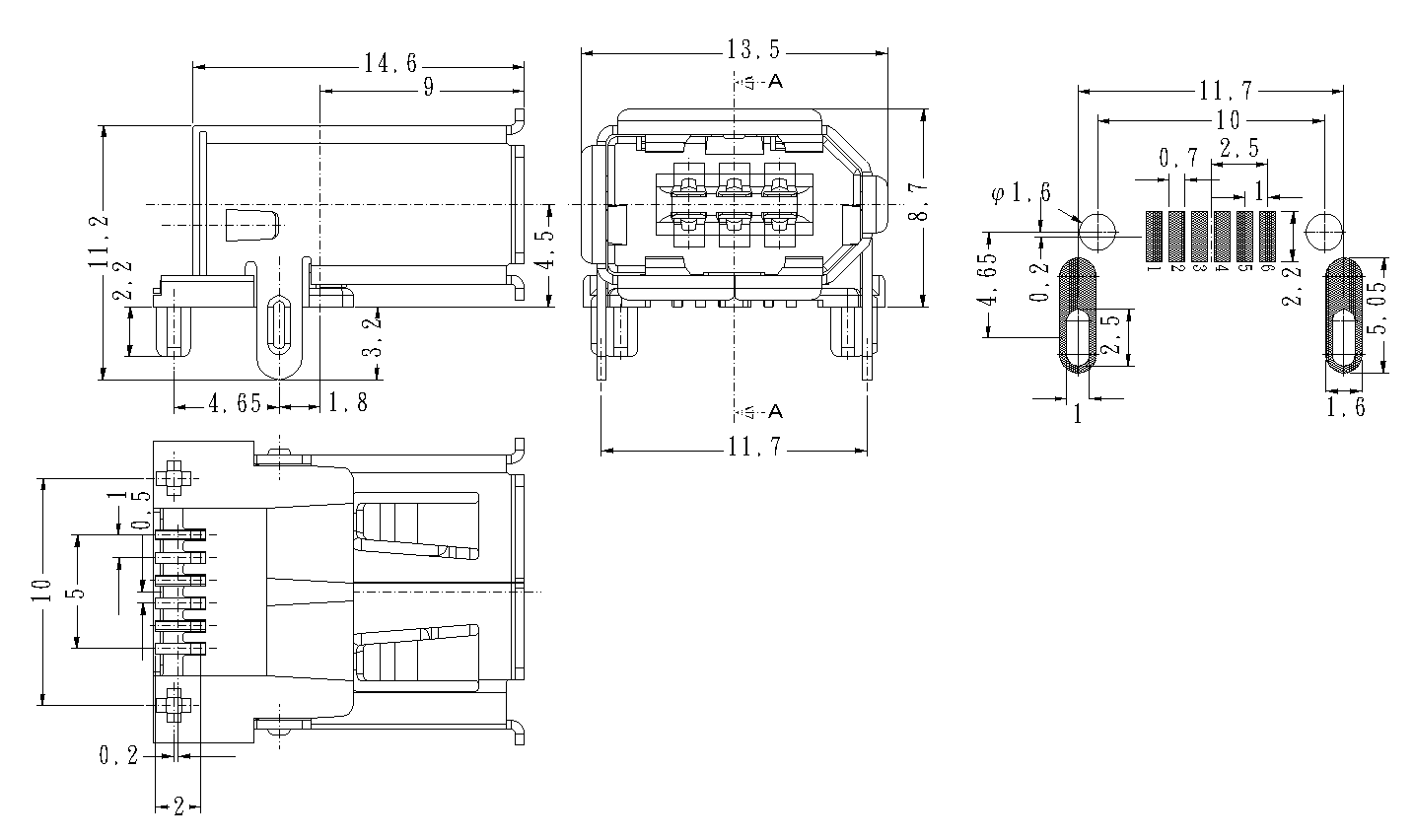

DIMENSIONS (UNIT: mm)

IEEE 1394 CONNECTOR


SMT TYPE Single port
ESB 661x10
