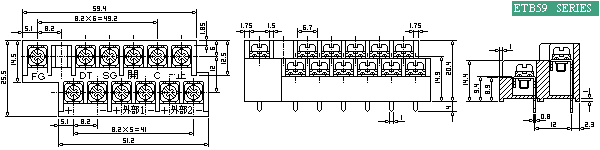

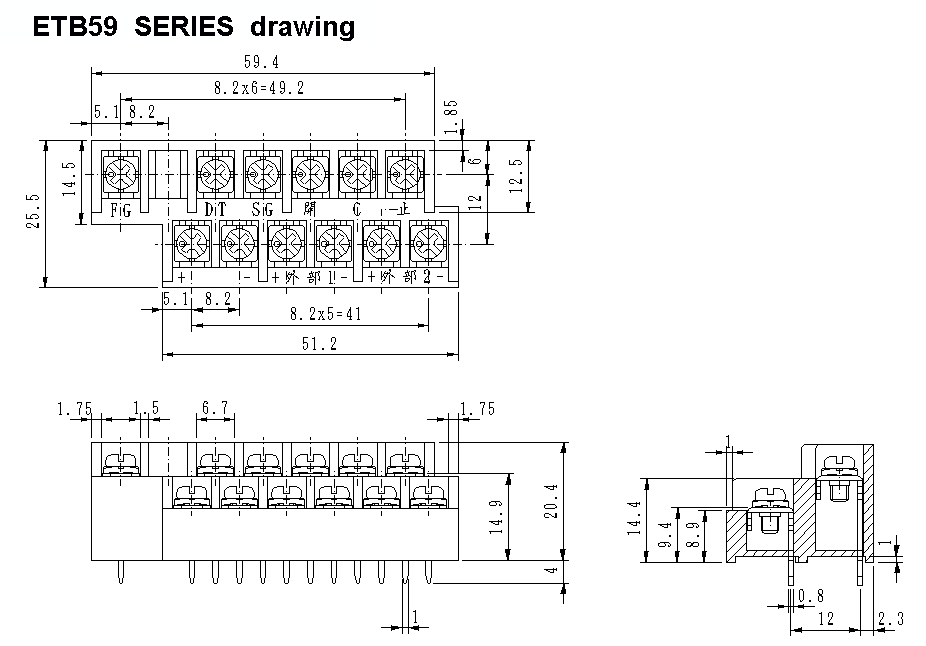

ETB59 SERIES (GAS TERMINAL TYPE)

UL Pending

SPECIFICATIONS:
HOUSING MATERIAL:
    THERMOPLASTIC (UL 94V-0) BLACK
TERMINALS:BRASS TIN PLATED
SCERWS:STEEL NICKEL PLATED
RATED:15AMP, 300VAC
DIELECTRIC STRENGTH: 2000 VAC (Min.)
INSULATION RESISTANCE: 1000 M, 500 VDC
WIRE RANGE :14 AWG TO 22 AWG
PITCH: 8.2 mm


PITCH=8.2mm (0.323inch)
WIRE RANGE: 14-22 AWG

mm to inch

**NUMBER OF POLE 02~30

mm

 0.8 1 1.5 1.75 1.85 2.3 4 5.1 6 6.7 8.2 8.9

inch

 0.032 0.039 0.059 0.069 0.073 0.091 0.157 0.201 0.236 0.264 0.323 0.350

mm

 9.4 12 12.5 14.4 14.5 14.9 20.4 25.5 41 49.2 51.2 59.4

inch

 0.370 0.472 0.492 0.567 0.571 0.587 0.803 1.004 1.614 1.937 2.016 2.339
