ELECTROMECHANICAL RELAY

ETR SERIES

Part Numbering System

  ETR  PB1  2  D  012  3  0
   |    |   |  |   |   |  |
   |    |   |  |   |   |  +--- Special code
   |    |   |  |   |   |         0:Standard
   |    |   |  |   |   |         1-9:Options
   |    |   |  |   |   +------ Terminal shape
   |    |   |  |   |             1:P.C.board terminal
   |    |   |  |   |             2:Solder lug/Plug-in
   |    |   |  |   |             3:Solder lug/Quick Connect
   |    |   |  |   +---------- Nominal coil voltage
   |    |   |  |                 (ex.003:3V, 012:12V, 220:220V)
   |    |   |  +-------------- Coil type
   |    |   |                    D:DC; A:AC
   |    |   +----------------- Contact arrangement
   |    |                        1:1PST; 2:1PDT; 3:2PST
   |    |                        4:2PDT; 5:4PDT; 6:1PST-DM
   |    +--------------------- Relay type
   |                             (ex.PB1, ME2, AD1)
   +-------------------------- Series name:ETR

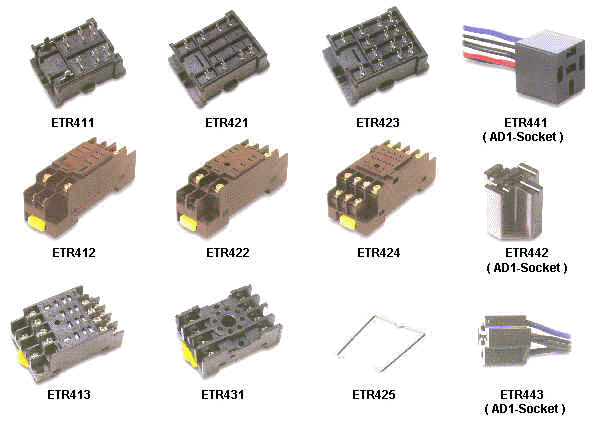

RELAY SOCKET
