I/O MODULES
ESR8 SERIES

FEATURES

  • Optically Isolated.
  • Micro-computer/TTL/CMOS Compatible.
  • Zero Voltage Turn-on, Zero Current Turn-off (Minizes Emi/Pfz)(AC Output).
  • Output Snubber Circuit Protection.
  • Compatible With 5,15,24 Volt Logic Systems.
  • Industry Standard Package and Pin-out.

PART NUMBERING SYSTEM

  ESR  8OA  05  3  240  0
   |    |    |  |   |   |
   |    |    |  |   |   +------- 0:Zero-on, Normal Open
   |    |    |  |   |            1:Random-on, Normal Open

   |    |    |  |   +------ Nominal Field Voltage
   |    |    |  |           240:240VAC; 060:60VDC
   |    |    |  +------ Load Current

   |    |    |          3:3Amps
   |    |    +----- Nominal Logic Voltage Type
   |    |           05:5V; 15:15V; 24:24V
   |    +---- Type Name
   |          8OA: I/O Modules AC Output (Black)
   |          8OD: I/O Modules DC Output (Red)
   +--- Series Name:ESR

  ESR  8IA  05  0  240  1
   |    |    |  |   |   |
   |    |    |  |   |   +------- 1:Random-on, Normal Open
   |    |    |  |   +------ Nominal Field Voltage
   |    |    |  |           240:240VAC; 032:32VDC
   |    |    |  +------ 0:Standard

   |    |    +----- Nominal Logic Voltage Type
   |    |           05:5V; 15:15V; 24:24V
   |    +---- Type Name
   |          8IA: I/O Modules AC Input (Yellow)
   |          8ID: I/O Modules DC Input (White)
   +--- Series Name:ESR

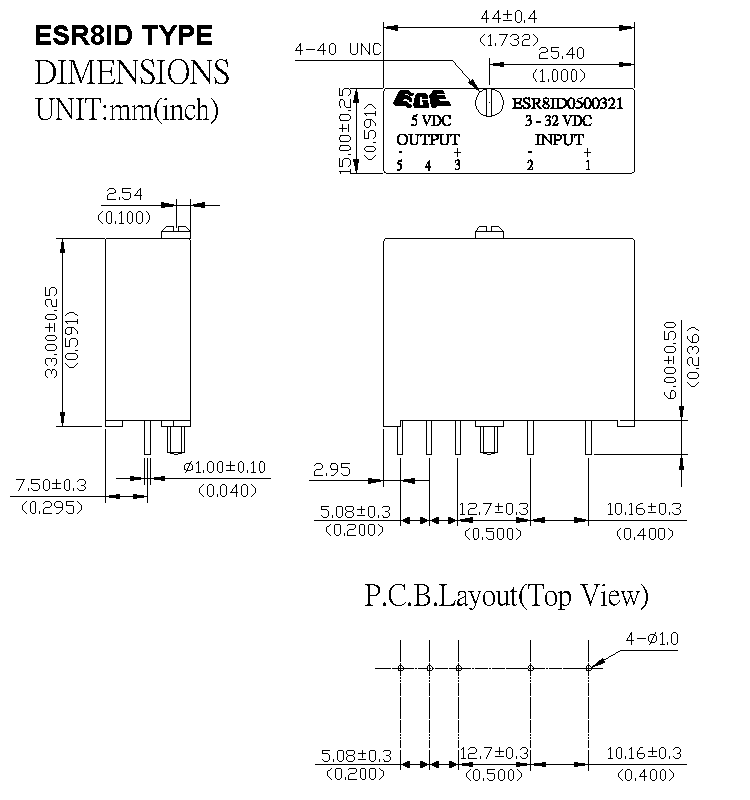

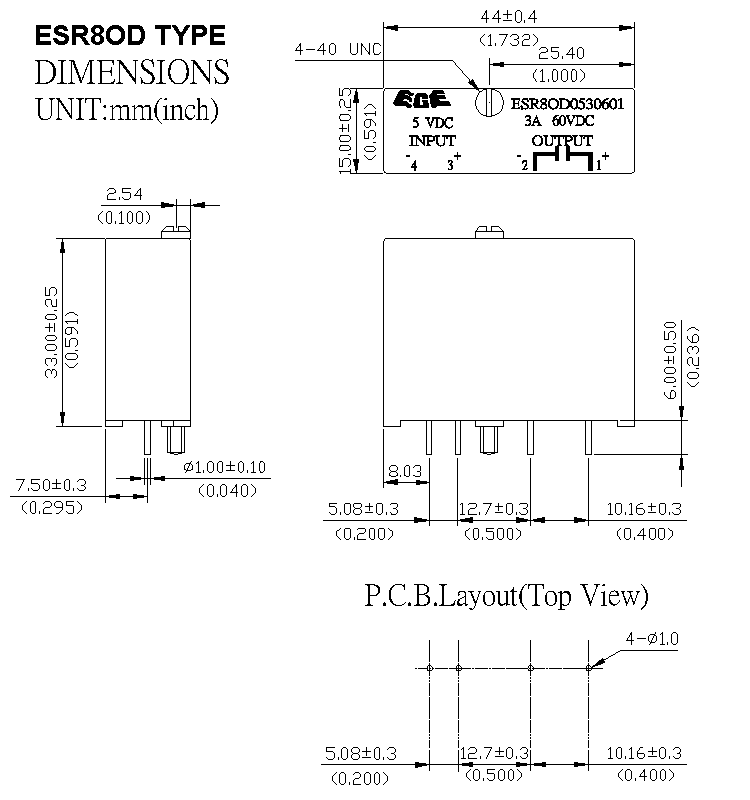

DIMENSIONS

SPECIFICATIONS

         ESR8OA/ESR8OD SERIES (AC/DC OUTPUT CONTROL)

          ESR8IA/ESR8ID SERIES (AC/DC INPUT CONTROL)
